SELECT A DIAGRAM

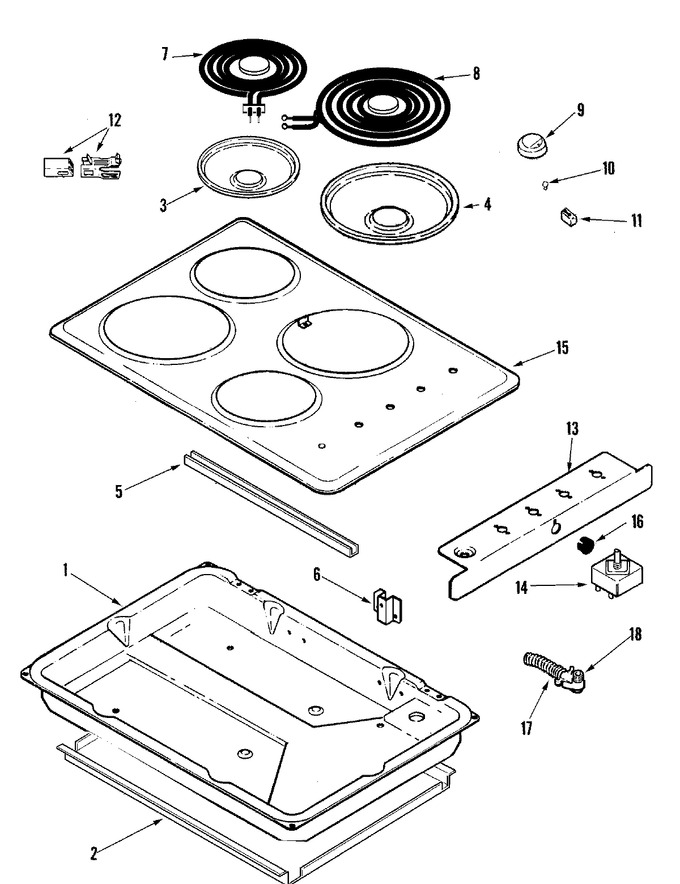

01 - Cooktop (complete)


02 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4011F143-80		Bottom, Burner Box	10	Appelez-nous	-
2	74004502		Baffle, Main Top	10	Appelez-nous	-
3	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 74001212)	10		Immediately	$ 12.05
4	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 74001213)	10		Immediately	$ 15.56
5	3802F070-51		Brace, Top	10	Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7118P004-60)	10			$ 4.29
6	7111P002-60		Clamp, Wire 3/4	10	Appelez-nous	-
6	3801F183-45		Bracket, Main Top Support	10	Appelez-nous	-
7	WPW10259868		Element, Surface (6``)   (Replaces: 74007157)	10		Immediately	$ 112.28
8	WPW10345410		Element, Surface (8``)   (Replaces: 74007156)	10		Immediately	$ 165.96
9	74004829		Knob, Inf. Switch (wht)	10			$ 17.99
10	W10852510		Light, Indicator   (Replaces: 7407P102-60)	10			$ 106.11
11	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	10			$ 6.73
12	WP74004005		Screw   (Replaces: 7101P042-60)	10			$ 6.95
12	12001676		Receptacle Assy.	10		Immediately	$ 28.45
13	74004488		Shield, Switch Wiring	10	Appelez-nous	-
14	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
14	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
14	910187		Screw	10			$ 5.83
15	74007944		Top, Main (wht)	10	Appelez-nous	-
16	8008P014-60		Grommet, Nylon	10	Appelez-nous	-
17	74001447		Wires, Tubing	10	Appelez-nous	-
17	3801F072-45		Bracket, Conduit	10	Appelez-nous	-
17	74005433		Tubing, Conduit	10	Appelez-nous	-
18	74007831		Grommet, Angle Connector	10	Appelez-nous	-
18	7417P004-60		Connector, Right Ang	10	Appelez-nous	-
19	W11740803		Harness, Surface Element   (Replaces: 74007807)	10	Appelez-nous	-
20	74002580		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
