01 - Cooktop Parts

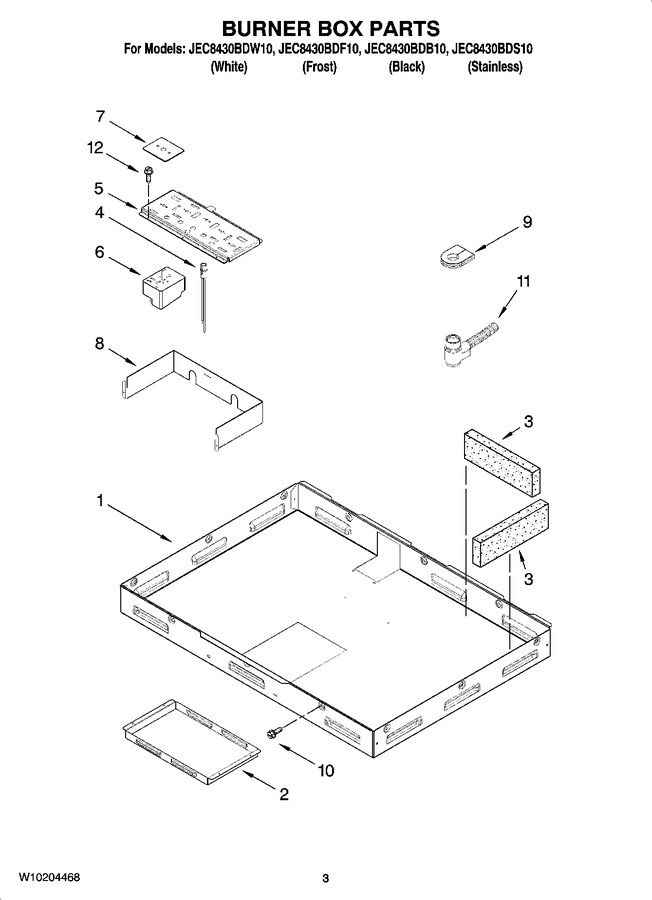

02 - Burner Box Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204473 | Box, Burner |
|
- | |||||
| 2 | W10204163 | Baffel, Bottom |
|
- | |||||
| 3 | 74007899 | Insulation (5) |
|
$ 5.88 | |||||
| 4 | W10204170 | Panel, Light (black) |
|
- | |||||
| 4 | W10204171 | Panel, Light (orange) |
|
- | |||||
| 4 | W10204172 | Panel, Light (blue) |
|
- | |||||
| 4 | W10204173 | Panel, Light (yellow) |
|
- | |||||
| 4 | W10204174 | Panel, Light (brown) |
|
- | |||||
| 4 | W10204169 | Panel, Light (red) |
|
- | |||||
| 5 | 74007916 | Plate, Switch |
|
- | |||||
| 6 | WP74007841 | Switch, Infinite (lf, Lr, 2600w) (Replaces: 74007841) |
|
$ 144.45 | |||||
| 6 | WP74007840 | Switch, Infinite (right Rear 1400w) (Replaces: 74007840) |
|
Immediately | $ 163.25 | ||||
| 6 | 12002121 | Switch, Infinite (right Front Dual) (Replaces: 74007853) |
|
$ 108.89 | |||||
| 7 | WP71002569 | Gasket, Infinte Sw (Replaces: 71002569) |
|
Immediately | $ 9.06 | ||||
| 8 | 74007917 | Cvr, Switch Plate |
|
- | |||||
| 9 | 8008P068-60 | Grommet, Wire (Replaces: 74007844) |
|
$ 14.39 | |||||
| 10 | 200758 | Screw |
|
$ 50.25 | |||||
| 11 | W10204475 | Harness, Main |
|
- | |||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 5171P765-60 | Hot Light Assy. |
|
$ 73.48 | ||||||
| 74010993 | Harness Switch Lt |
|
- | ||||||
| 74010999 | Harness, Switch (rt) |
|
- | ||||||
| 7111P020-60 | Clamp, Wire 3/4`` |
|
- |
