SELECT A DIAGRAM

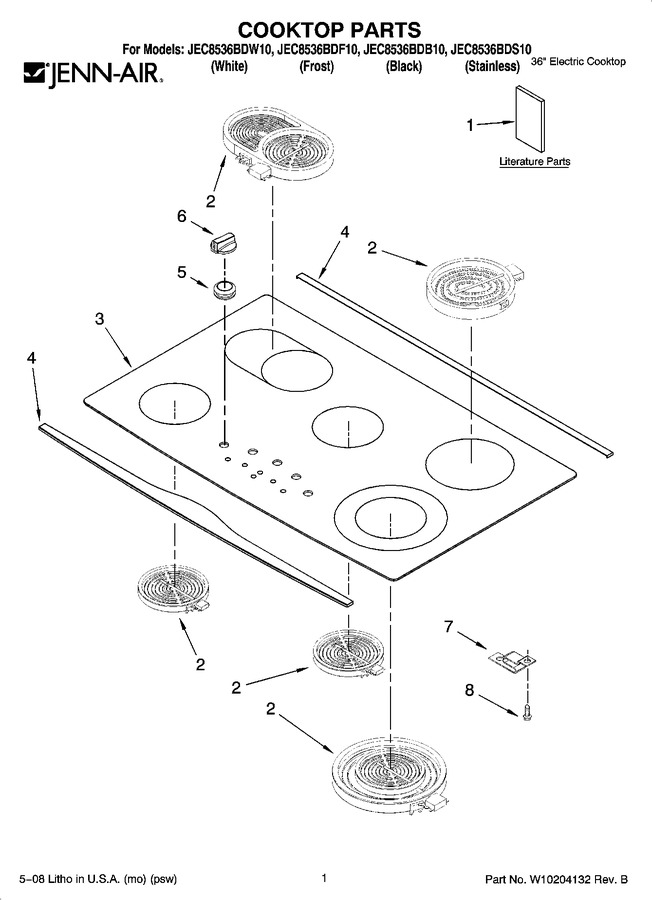

01 - Cooktop Parts
02 - Burner Box Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204140 | Install Instruc. |
|
- | |||||
| 1 | W10204139 | Use & Care Guide |
|
- | |||||
| 2 | 74011004 | Element (oval 6`` (lr)) |
|
$ 145.76 | |||||
| 2 | W10823711 | Element (1200w (lf, Ctr)) (Replaces: 74008568) |
|
Immediately | $ 183.95 | ||||
| 2 | W10823698 | Element (1800w (rr)) (Replaces: 74011006) |
|
Immediately | $ 175.61 | ||||
| 2 | W10823692 | Element (2400w Dual (rf)) (Replaces: 74008897) |
|
Immediately | $ 204.83 | ||||
| 3 | W10204143 | Top, Main (stainless) |
|
$ 458.19 | |||||
| 3 | W10204142 | Top, Main (white/frost) |
|
- | |||||
| 4 | W10168884 | Trim, Stainless (rear) |
|
$ 149.79 | |||||
| 4 | W10168880 | Trim, Stainless (front) |
|
$ 122.86 | |||||
| 5 | WPW10293874 | Grommet (Replaces: 74007885) |
|
Immediately | $ 7.25 | ||||
| 6 | WP7737P412-60 | Knob, Control (5) (Replaces: W10204150) |
|
$ 42.52 | |||||
| 7 | 74003072 | Support, Element |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 |
