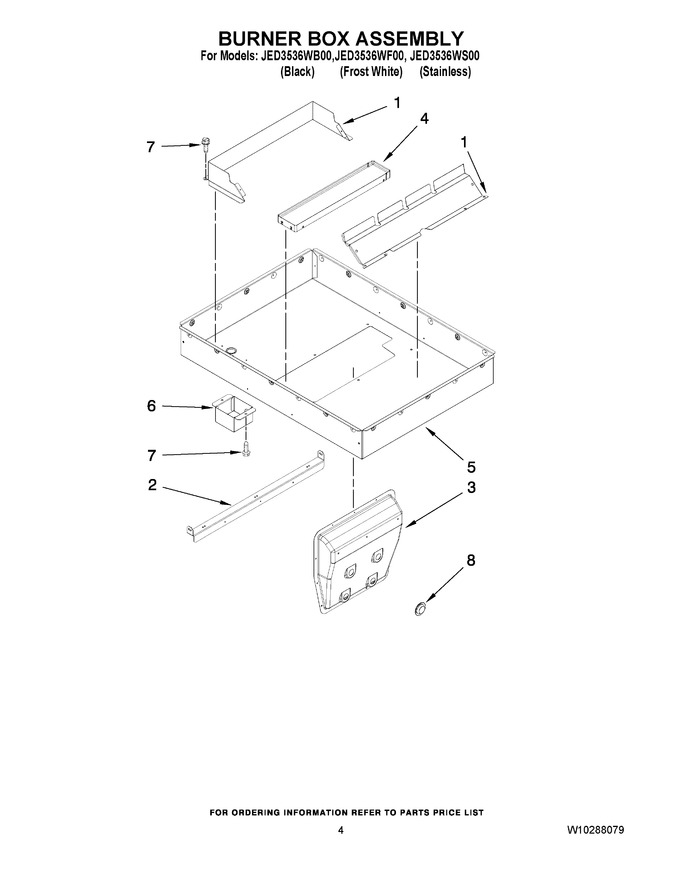

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10269712 Bracket, Support (left) Appelez-nous -
1 W10269705 Bracket, Support (right) Appelez-nous -
2 W10254665 Rail, Extender Special Order $ 42.36

3 W10184125 Bypass, Plenum Special Order $ 181.44

4 W10235990 Tray, Spill Special Order $ 73.51

5 W10267686 Bottom, Burner Appelez-nous -
6 W10258697 Cover, Blower Motor Harness In-Stock Immediately $ 81.29

7 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

8 7718P023-60 Plug, Hole(4) Special Order $ 8.98


    View Diagram in Separate Window     Print Icon   Print Part List
