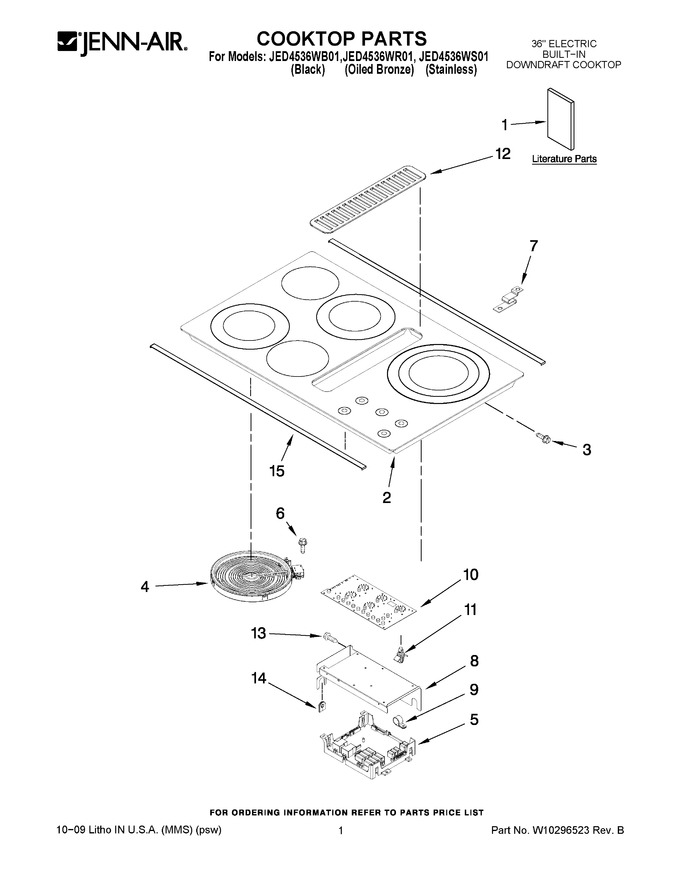

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10197059		Installation Instructions		Appelez-nous	-
1	W10277488		Wiring Diagram (english)		Appelez-nous	-
1	W10277487		Wiring Diagram (french)		Appelez-nous	-
1	W10197057		Use & Care Guide		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	W10161726		Top, Main (oiled Bronze)				$ 724.23
2	W10162423		Top, Main (black/stainless)				$ 628.58
3	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
4	WP7406P497-60		Element, Surface (rf)   (Replaces: 7406P497-60)			Immediately	$ 132.93
4	WPW10221529		Element, Surface (lf/rr)   (Replaces: W10221529)				$ 304.68
4	W11171119		Element, Surface (lr)   (Replaces: 8273994)			Immediately	$ 164.01
4	W11101459		Element, Surface (triple)   (Replaces: W10259005)			Immediately	$ 194.15
5	WPW10190396		Board, Control   (Replaces: W10190396)			Immediately	$ 325.60
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
7	8004P093-60		Support, Ceramic				$ 10.61
8	W10225920		Plate, Switch		Appelez-nous	-
9	7111P020-60		Clamp, Wire		Appelez-nous	-
10	W10190399		Switch, Control				$ 350.03
11	W10225914		Support, Locking		Appelez-nous	-
12	WPW10205094		Grille, Air   (Replaces: W10205094)				$ 216.02
13	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
14	8008P068-60		Wire, Grommet				$ 14.39
15	W10168884		Trim Stainless Only				$ 149.79
