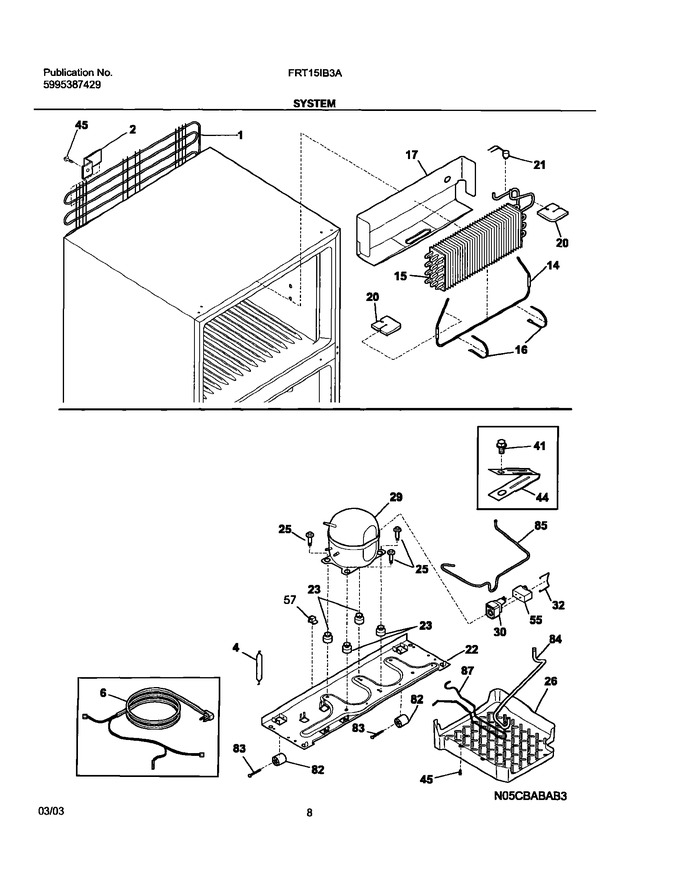

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000296 | Bracket,condenser Mtg ,(4) |
|
$ 30.20 | |||||
| 15 | 5303918275 | Evaporator Kit |
|
$ 343.46 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 240434001 | Trough-drain |
|
- | |||||
| 20 | 240518401 | Insulation,evap Block ,foam ,lh/rh |
|
- | |||||
| 22 | 240330005 | Base-compressor |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 240491501 | Screw-compressor Mtg,hex Washer Head ,1/4-28 X 1.16,shoulder,typ Cf |
|
- | |||||
| 26 | 241920605 | Pan-defrost Drain (Replaces: 240332605) |
|
$ 53.76 | |||||
| 32 | 240493301 | Clamp,elec Cont Mtg ,compressor ,bale Wire |
|
- | |||||
| 41 | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433202) |
|
$ 15.17 | |||||
| 44 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 45 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 35.34 | ||||
| 84 | 240500801 | Tube-drain,rubber ,lower |
|
$ 65.21 | |||||
| 85 | 240493101 | Tube-connector,suction |
|
$ 85.95 | |||||
| 87 | 240533004 | Tube-condensate,87 |
|
$ 14.47 | |||||
| F1 | 240406405 | Condenser,static |
|
- | |||||
| F14 | 5303918203 | Defrost Heater Kit |
|
$ 156.64 | |||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 20.21 | ||||
| F29 | 5304507765 | Compressor,w/electricals (Replaces: 5303918264) |
|
Immediately | $ 677.23 | ||||
| F30 | 5304491942 | Starter-ptc (Replaces: 218721120) |
|
$ 121.19 | |||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| F55 | 5304464438 | Capacitor,run ,50/60 Hz ,220 Vac ,15 Microfarad (Replaces: 218909901) |
|
Immediately | $ 35.38 | ||||
| F6 | 240375401 | Wiring Harness,machine Compt ,w/ Service Cord |
|
$ 143.79 | |||||
| NI | 5303918263 | Heat Exchanger Kit,suction Line |
|
$ 461.16 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| NI | 5303918234 | Hot Tube Repair Kit,service |
|
$ 585.53 | |||||
| NI | 218843800 | Screw,hex Wshr Hd ,8-15a X 0.500 |
|
- | |||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 19.13 | |||||
| NI | 240524701 | Wiring Harness,freezer Section |
|
$ 73.08 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| NI | 5303208866 | Spacer,condenser Tube ,black |
|
$ 1.94 |
