SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assy.

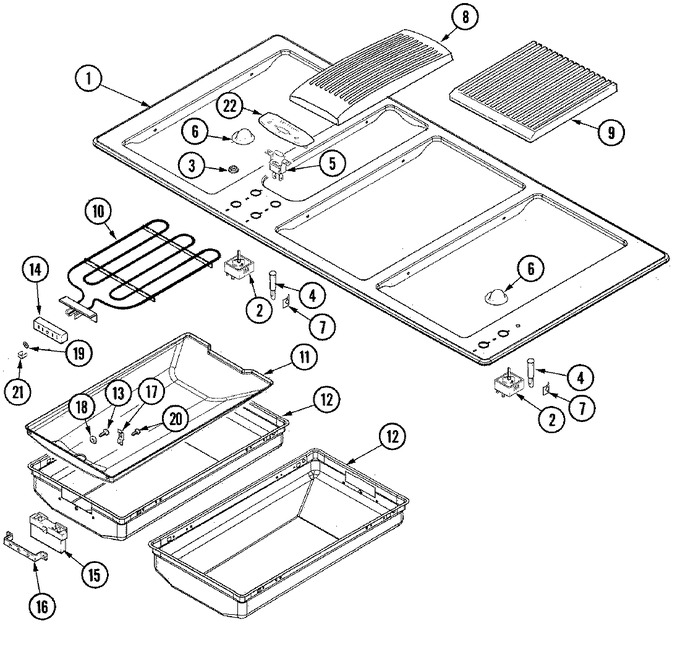

03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74005803 | Top, Main (blk) | 10 |
|
- | ||||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 2 | W11088181 | Switch, Infinite (Replaces: 71001166) | 10 |
|
Immediately | $ 107.44 | |||
| 2 | Y705255 | Gasket, Switch | 10 |
|
- | ||||
| 3 | 71001561 | Palnut | 10 |
|
- | ||||
| 4 | 74005790 | Light, Indicator (red) | 10 |
|
Immediately | $ 7.36 | |||
| 5 | 12001452 | Relay, Fan (Replaces: 71001579) | 10 |
|
$ 179.93 | ||||
| 5 | 71001564 | Switch, Fan (blk) | 10 |
|
- | ||||
| 6 | WP7737P193-60 | Knob, Surface (blk) (Replaces: 74005801) | 10 |
|
$ 17.01 | ||||
| 7 | WP7112P152-60 | Clip, Indicator Light (Replaces: 74005791) | 10 |
|
$ 10.49 | ||||
| 8 | 74005794 | Grill, Air (blk) | 10 |
|
- | ||||
| 9 | 74005795 | Grate, Grill | 10 |
|
- | ||||
| 9 | 74006513 | Grate, Grill | 11 |
|
- | ||||
| 10 | WP74004005 | Screw (Replaces: Y703571) | 10 |
|
$ 6.95 | ||||
| 10 | 74005796 | Washer | 10 |
|
- | ||||
| 10 | 74005553 | Element, Grill | 10 |
|
- | ||||
| 11 | 74005797 | Pan, Grill Insert | 10 |
|
- | ||||
| 12 | 74005799 | Pan, Grill (lt) | 10 |
|
- | ||||
| 12 | 74005800 | Pan, Grill (rt) | 10 |
|
- | ||||
| 12 | 74006299 | Pan, Grill | 10 |
|
- | ||||
| 13 | WP12990527 | Screw (Replaces: Y708955) | 10 |
|
Immediately | $ 7.15 | |||
| 14 | WPY708730 | Block, Terminal (Replaces: Y708730) | 10 |
|
Immediately | $ 87.44 | |||
| 15 | WPY702434 | Receptacle (Replaces: 702783) | 10 |
|
Immediately | $ 96.61 | |||
| 15 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 10 |
|
Immediately | $ 96.61 | |||
| 15 | 74005866 | Insulator, Ceramic Block | 10 |
|
- | ||||
| 16 | 74005798 | Bracket, Receptacle | 10 |
|
- | ||||
| 17 | 74004835 | Clip (Replaces: Y702699) | 10 |
|
$ 11.37 | ||||
| 18 | 74005796 | Washer | 10 |
|
- | ||||
| 19 | M0282009 | Hex. Nut----na (Replaces: Y052679) | 10 |
|
$ 12.06 | ||||
| 20 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 21 | Y700450 | Clip, Shunt | 10 |
|
$ 9.51 | ||||
| 22 | W10341820 | Trim, Control Fan (blk) (Replaces: 74005805) | 10 |
|
$ 274.08 | ||||
| 23 | 74005850 | Wire, Violet 13 | 10 |
|
- | ||||
| 23 | 74005848 | Wire, Blue 41 | 10 |
|
- | ||||
| 23 | 74005852 | Wire, Black 15 | 10 |
|
$ 6.56 | ||||
| 23 | 74005853 | Wire, Red 16 | 10 |
|
- | ||||
| 23 | 74005851 | Wire, Brown 12.5 | 10 |
|
- | ||||
| 23 | 74005849 | Wire, Yellow 14 | 10 |
|
- | ||||
| 23 | 74005847 | Wire, Brown 31.5 | 10 |
|
- | ||||
| 23 | WP5708M007-60 | Wire, Yellow 35 (Replaces: 74005846) | 10 |
|
$ 117.23 | ||||
| 23 | 74005845 | Wire, Vio 33 | 10 |
|
$ 24.00 | ||||
| 23 | 74005844 | Wire, Blue 20 | 10 |
|
$ 8.89 | ||||
| 23 | 74005843 | Wire, Brown 14, 15 | 10 |
|
- | ||||
| 23 | 74005842 | Wire, Violet 15 | 10 |
|
- | ||||
| 23 | 74005841 | Wire, Yellow 18 | 10 |
|
$ 14.44 | ||||
| 24 | 74005526 | Manual, Use & Care | 10 |
|
- | ||||
| 24 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 24 | 16008409 | Cookbook----na | 10 |
|
- | ||||
| 24 | EC001-00 | Manual, Service | 10 |
|
- |
