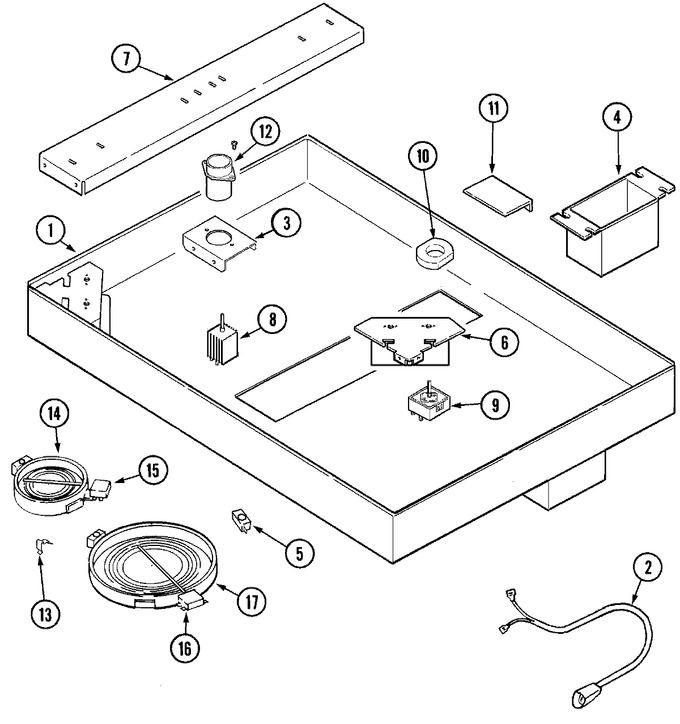

01 - Blower Assembly-plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
05 - Wiring Information
06 - Wiring Information (frc)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003472 | Bottom, Burner Box | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 1 | 74007640 | Bottom, Burner Box | 17 |
|
- | ||||
| 2 | 71003476 | Cord, Fan Receptacle | 10 |
|
- | ||||
| 3 | 71003559 | Bracket, Filler (front) | 10 |
|
- | ||||
| 3 | WPY706189 | Screw No.8 Truss (Replaces: Y04100274) | 10 |
|
Immediately | $ 6.47 | |||
| 4 | Y706173 | Box, Junction | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | Y706174 | Cover, Junction Box | 10 |
|
- | ||||
| 5 | 71003486 | Light, Hot | 10 |
|
$ 44.79 | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | 74004940 | Bracket, Switch Plate | 10 |
|
- | ||||
| 7 | 71003467 | Plate, Element Support | 10 |
|
- | ||||
| 8 | WP74009254 | Switch, Fan Control (Replaces: 74009254) | 10 |
|
Immediately | $ 192.13 | |||
| 9 | 12002125 | Switch, Infinite (dual) (Replaces: 74007896) | 11 |
|
Immediately | $ 79.23 | |||
| 9 | W11088181 | Switch, Infinite (Replaces: 71001166) | 10 |
|
Immediately | $ 107.44 | |||
| 9 | 12002125 | Switch, Dual (Replaces: 71001612) | 10 |
|
Immediately | $ 79.23 | |||
| 9 | WP74011242 | Switch, Infinite (Replaces: 71003489) | 10 |
|
Immediately | $ 75.89 | |||
| 9 | 12002125 | Kit, Dual Infinite Switch | 18 |
|
Immediately | $ 79.23 | |||
| 10 | Y706061 | Box, Light | 10 |
|
$ 51.50 | ||||
| 10 | WPY706189 | Screw No.8 Truss (Replaces: Y04100274) | 10 |
|
Immediately | $ 6.47 | |||
| 11 | 71003470 | Bracket, Filler (rear) | 10 |
|
- | ||||
| 12 | WP74005965 | Knob Sleeve/brkt (fan Switch) (Replaces: 74005965) | 10 |
|
$ 53.95 | ||||
| 13 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 10 |
|
$ 10.51 | ||||
| 13 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 14 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 10 |
|
Immediately | $ 309.01 | |||
| 15 | 74004494 | Limiter | 10 |
|
- | ||||
| 16 | 74004494 | Limiter | 10 |
|
- | ||||
| 17 | W10823703 | Element (dual-w/limiter) (Replaces: 71003634) | 10 |
|
Immediately | $ 204.99 | |||
| 17 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 10 |
|
Immediately | $ 316.13 |
