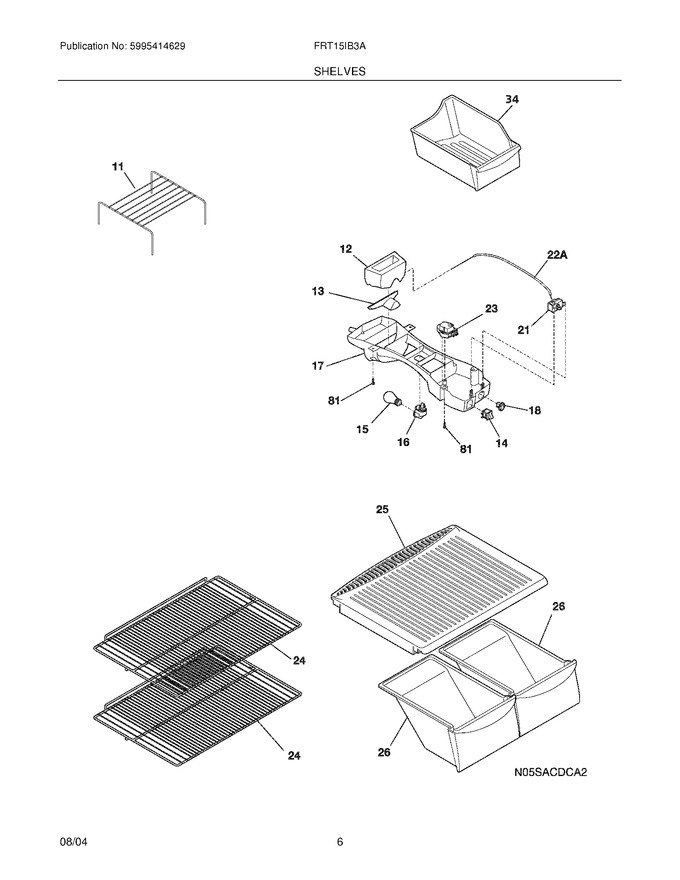

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 88.05 | ||||
| 12 | 241542001 | Diffuser,air ,top |
|
Immediately | $ 74.42 | ||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature (Replaces: 240436702) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240368002 | Control Box (Replaces: 240368001) |
|
$ 134.23 | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240360906 | Shelf,sliding ,wire (Replaces: 240360902) |
|
Immediately | $ 99.35 | ||||
| 25 | 240364706 | Cover-crisper Pan |
|
- | |||||
| 26 | 240364501 | Pan,crisper ,(2) |
|
Immediately | $ 158.45 | ||||
| 34 | 240385201 | Container,ice Bin |
|
$ 97.83 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer-defrost (Replaces: 240371001) |
|
Immediately | $ 28.20 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 |
