Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74007640 Bottom, Burner Box 10 Appelez-nous -
1 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

2 71003476 Cord, Fan Receptacle 10 Appelez-nous -
3 Y312706 Hex Nut On Switch 10 Appelez-nous -
4 Y706174 Cover, Junction Box 10 Appelez-nous -
4 Y706173 Box, Junction 10 Appelez-nous -
4 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

5 71003486 Light, Hot 10 Special Order $ 44.79

6 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

6 74004940 Bracket, Switch Plate 10 Appelez-nous -
7 71003467 Plate, Element Support 10 Appelez-nous -
8 WP74009254 Switch, Fan Control   (Replaces: 74009254) 10 In-Stock Immediately $ 192.13

9 WP74008248 Switch, Dual Infinite   (Replaces: 74008248) 10 In-Stock Immediately $ 118.71

9 WP74011242 Switch, Infinite   (Replaces: 71003489) 10 In-Stock Immediately $ 75.89

9 W11088181 Switch, Infinite   (Replaces: 71001166) 10 In-Stock Immediately $ 107.44

10 Y706061 Box, Light 10 Special Order $ 51.50

10 WPY706189 Screw No.8 Truss   (Replaces: Y04100274) 10 In-Stock Immediately $ 6.47

11 71003470 Bracket, Filler (rear) 10 Appelez-nous -
12 WP74005965 Knob Sleeve/brkt (fan Switch)   (Replaces: 74005965) 10 Special Order $ 53.95

13 WP74004005 Screw   (Replaces: 7101P349-60) 10 Special Order $ 6.95

13 74007134 Spring, Element Support   (Replaces: Y04100418) 10 Special Order $ 10.51

14 74011191 Element (6``) 11 Special Order $ 113.23

14 74007124 Element, (6`` Radiant) 1200w 10 Special Order $ 111.84

14 74011190 Element (6``) 11 Special Order $ 111.72

14 74007125 Element, (6`` Radiant) 1200w 10 Special Order $ 136.38

15 WPW10162365 Element, Dual (8``)   (Replaces: 74011193) 11 In-Stock Immediately $ 301.51

15 74011192 Element (8``) 11 Special Order $ 148.12

15 W10823703 Element (dual-w/limiter)   (Replaces: 71003634) 10 In-Stock Immediately $ 204.99

15 74007251 Element (8`` Radiant) 2200w 10 Special Order $ 148.11


    View Diagram in Separate Window     Print Icon   Print Part List

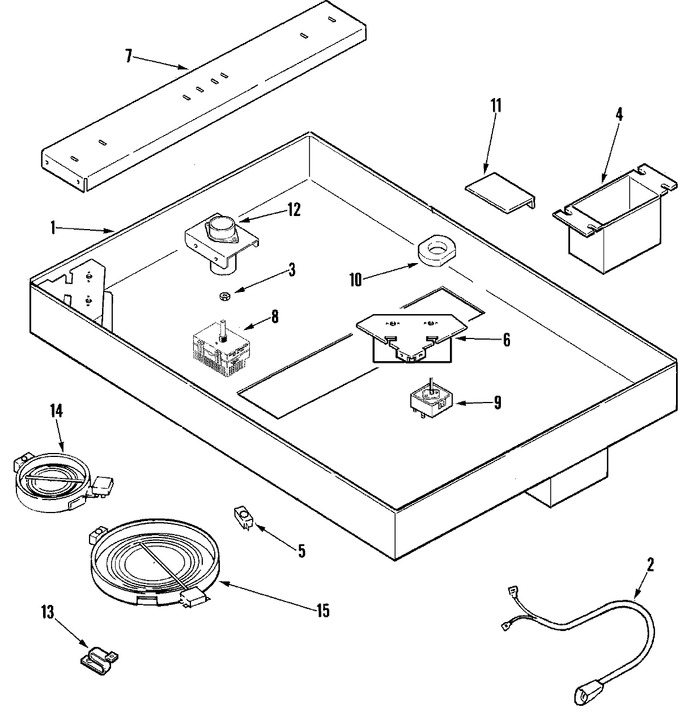

Diagram for JED8430BDN
