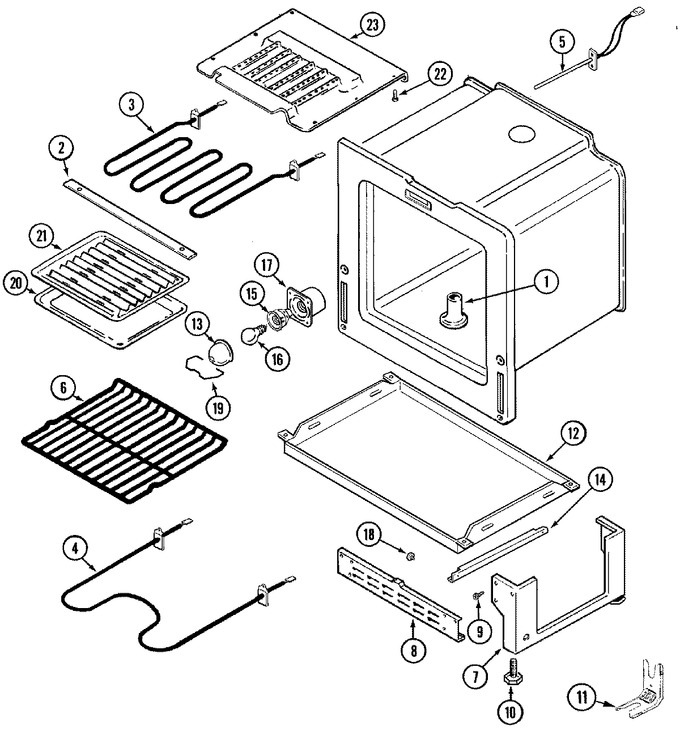

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003469		Tube, Vent	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74003563		Support, Broil Element	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
3	WP7406P218-60		Element, Broil (6 Pass)   (Replaces: 74003040)	10		Immediately	$ 152.28
3	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74010750		Element, Bake   (Replaces: 74003039)	10		Immediately	$ 47.69
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 39.55
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	74006325		Pedestal, Side	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
11	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
12	74006522		Retainer, Insulation (bottom)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74003389		Cover, Bulb	10	Appelez-nous	-
14	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
14	74003565		Runner, Drawer	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74003387		Receptacle, Bulb	10			$ 5.84
16	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	10		Immediately	$ 16.80
17	74003388		Housing, Bulb	10	Appelez-nous	-
18	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
18	74005230		Nut, Lock (8-32)	10			$ 12.02
18	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
19	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
20	Y3401F02019		Pan, Broil	10	Appelez-nous	-
21	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
22	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	10		Immediately	$ 12.62
23	3601F237-47		Baffle, Broil	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
