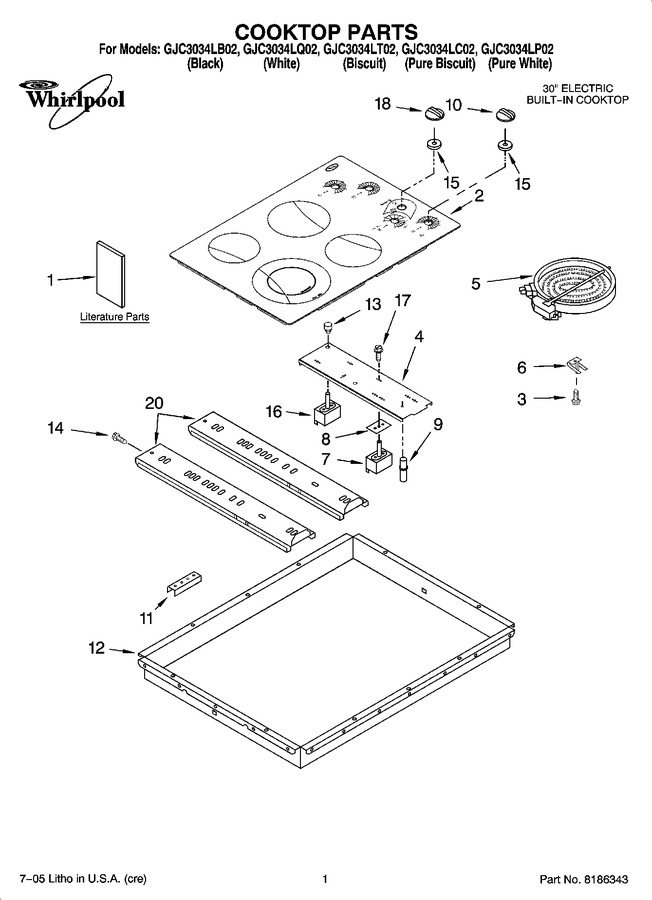

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759087 | Installation Instructions |
|
- | |||||
| 1 | 9759391 | Wiring Diagram |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips |
|
- | |||||
| 1 | 8285340 | Use & Care Guide |
|
- | |||||
| 2 | 8285128 | Cooktop & Bracket Assembly (pure White) |
|
- | |||||
| 2 | 8285129 | Cooktop & Bracket Assembly (purebiscuit) |
|
- | |||||
| 2 | 4457298 | Cooktop & Bracket Assembly (seal, Foam) |
|
$ 5.58 | |||||
| 2 | 8285125 | Cooktop & Bracket Assembly (black) |
|
$ 305.42 | |||||
| 2 | 8285126 | Cooktop & Bracket Assembly (white) |
|
- | |||||
| 2 | 8285127 | Cooktop & Bracket Assembly (biscuit) |
|
- | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8285146 | Bracket, Switch Mounting |
|
- | |||||
| 5 | W10823692 | Element, Surface (2400/1200w - Lf) (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 5 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 5 | W10823699 | Element, Surface (1500w - Rf) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 5 | W10823711 | Element, Surface (1200w - Lr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 6 | 9759094 | Spring, Locator (8) |
|
$ 6.34 | |||||
| 7 | WP3191050 | Switch, Infinite (use W/rr Burner) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 7 | WP9759474 | Switch, Infinite (use W/lf Burner) (Replaces: 9759474) |
|
Immediately | $ 106.42 | ||||
| 7 | WP3191049 | Switch, Infinite (use W/rf & Lr Burners) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 8 | W10491984 | Seal, Switch Cover (Replaces: 3192439) |
|
$ 10.33 | |||||
| 9 | 3191952 | Light, Indicator |
|
- | |||||
| 10 | WP8522565 | Knob, Control (4) (white) (Replaces: 8522565) |
|
Immediately | $ 17.91 | ||||
| 10 | 8522567 | Knob, Control (4) (biscuit) |
|
$ 15.97 | |||||
| 10 | WP8522566 | Knob, Control (4) (black) (Replaces: 8522566) |
|
$ 19.11 | |||||
| 11 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 12 | 4456959 | Box, Burner |
|
- | |||||
| 13 | 3191953 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Switch Shaft (4) |
|
$ 45.00 | |||||
| 16 | WP9762441 | Switch, Rotary (accusimer) (Replaces: 8285139) |
|
$ 132.81 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 8522571 | Knob, Accusimer (biscuit) |
|
- | |||||
| 18 | 8522570 | Knob, Accusimer (black) |
|
$ 6.44 | |||||
| 18 | 8522569 | Knob, Accusimer (white) |
|
$ 6.69 | |||||
| 20 | 3192737 | Seal, Heat |
|
$ 35.16 | |||||
| 20 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 20 | 8286585 | Rail, Element |
|
- | |||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3191048 | Cleaner |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 4456028 | Wire, Jumper |
|
$ 22.62 | ||||||
| 4455364 | Bracket, Support (6) |
|
$ 82.35 | ||||||
| 3172515 | Mtg. Hardware Kit |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 4456516 | Harness, Conduit |
|
- | ||||||
| 4456580 | Wiring Harness Surface Unit |
|
- |
