SELECT A DIAGRAM

01 - Body


02 - Door/drawer


03 - Oven/base


04 - Wiring Information

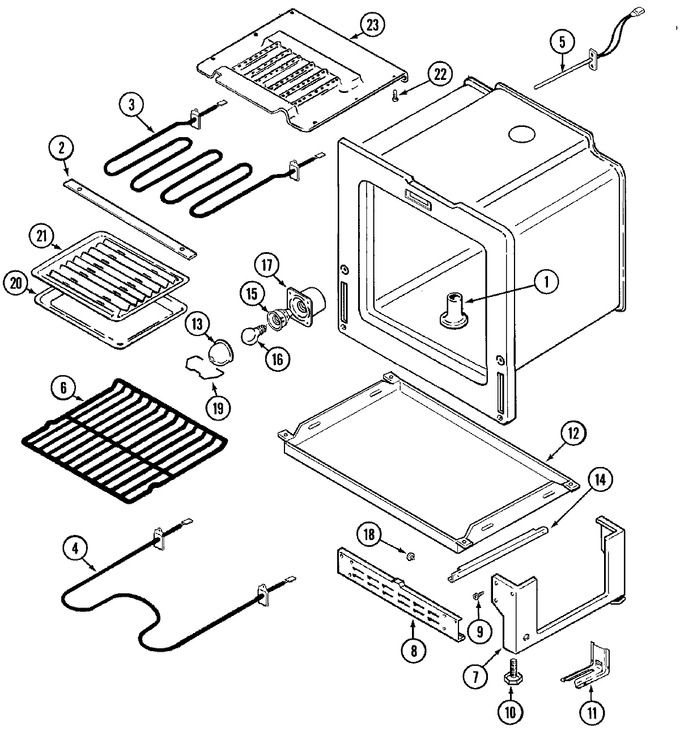

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P019-60		Tube, Vent	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74003563		Support, Broil Element	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	W11676350		Element, Broil (8 Pass)   (Replaces: 74003042)	10			$ 164.05
4	WP74010750		Element, Bake   (Replaces: 74003039)	10		Immediately	$ 47.69
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	12001656		Sensor, Oven (long)   (Replaces: 74003390)	10		Immediately	$ 39.55
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	74003393		Pedestal, Side	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
11	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	10		Immediately	$ 4.69
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74003392		Retainer, Insulation (bottom)	10	Appelez-nous	-
13	74003389		Cover, Bulb	10	Appelez-nous	-
13	74003389		Cover, Bulb	12	Appelez-nous	-
13	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	11		Immediately	$ 71.93
14	74003565		Runner, Drawer	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74003387		Receptacle, Bulb	10			$ 5.84
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	11		Immediately	$ 66.10
15	74003387		Receptacle, Bulb	12			$ 5.84
16	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	10		Immediately	$ 16.80
17	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
17	74003388		Housing, Bulb	10	Appelez-nous	-
17	74003388		Housing, Bulb	12	Appelez-nous	-
18	74003566		Roller, Drawer	10	Appelez-nous	-
18	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
19	74003391		Retainer, Bulb Cover	12	Appelez-nous	-
19	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
19	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
20	Y3401F02019		Pan, Broil	10	Appelez-nous	-
21	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
23	74003564		Baffle, Broil	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
