SELECT A DIAGRAM

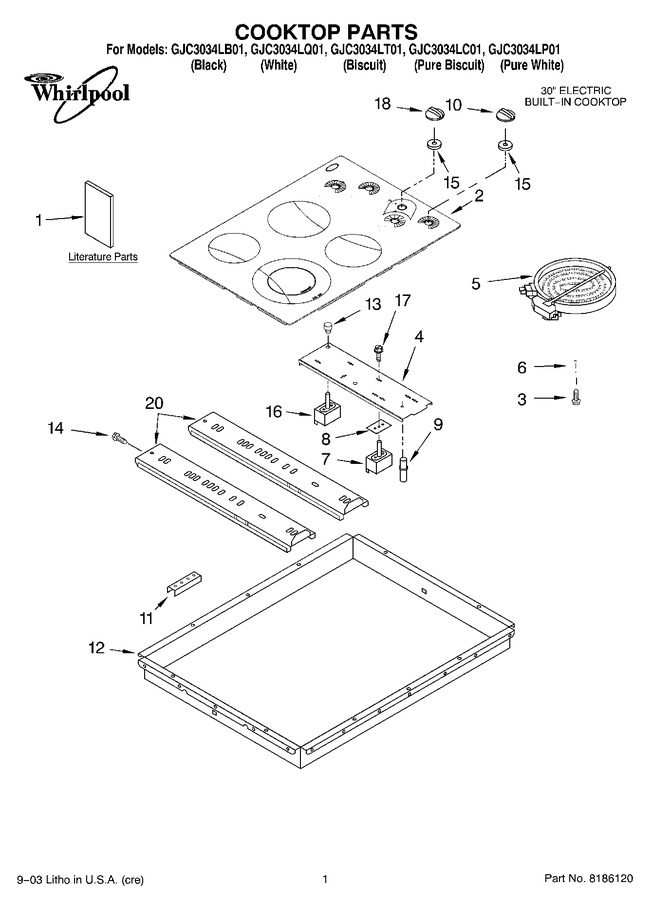

01 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4455127		Literature Parts (energuide Label)		Appelez-nous	-
1	LIT8285316		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8285340		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8285414		Literature Parts (wiring Diagram)		Appelez-nous	-
2	8285125		Cooktop & Bracket Assembly (black)				$ 305.42
2	8285127		Cooktop & Bracket Assembly (biscuit)		Appelez-nous	-
2	8285128		Cooktop & Bracket Assembly (pure White)		Appelez-nous	-
2	8285129		Cooktop & Bracket Assembly (purebiscuit)		Appelez-nous	-
2	8285126		Cooktop & Bracket Assembly (white)		Appelez-nous	-
3	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
4	8285146		Bracket, Switch Mounting		Appelez-nous	-
5	W10823692		Element, Surface (1000/2400w - Lf)   (Replaces: 8523693)			Immediately	$ 204.83
5	W10823698		Element, Surface (1800w - Rr)   (Replaces: 8523696)			Immediately	$ 175.61
5	W10823699		Element, Surface (1500w - Rf)   (Replaces: 8523697)			Immediately	$ 145.67
5	W10823711		Element, Surface (1200w - Lr)   (Replaces: 8523698)			Immediately	$ 183.95
6	3191791		Spring, Locator (8)		Appelez-nous	-
7	WP3191049		Switch, Infinite (use W/rf & Lr Burners)   (Replaces: 3191049)				$ 150.25
7	WP9759474		Switch, Infinite (use W/lf Burner)   (Replaces: 4456460)			Immediately	$ 106.42
7	WP3191050		Switch, Infinite (use W/rr Burner)   (Replaces: 3191050)			Immediately	$ 149.72
8	W10491984		Seal, Switch Cover   (Replaces: 3192439)				$ 10.33
9	3191952		Light, Indicator		Appelez-nous	-
10	WP8522566		Knob, Control (4) (black)   (Replaces: 8522566)				$ 19.11
10	WP8522565		Knob, Control (4) (white)   (Replaces: 8522565)			Immediately	$ 17.91
10	8522567		Knob, Control (4) (biscuit)				$ 15.97
11	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	4456578		Box, Burner		Appelez-nous	-
13	3191953		Bumper, Silicone		Appelez-nous	-
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	8285469		Seal, Switch Shaft (4)				$ 45.00
16	WP9762441		Switch, Rotary (accusimer)   (Replaces: 8285139)				$ 132.81
17	WP486579		Screw   (Replaces: 311865)				$ 6.61
18	8522569		Knob, Accusimer (white)				$ 6.69
18	8522570		Knob, Accusimer (black)				$ 6.44
18	8522571		Knob, Accusimer (biscuit)		Appelez-nous	-
20	WP3400015		Screw, 10-32 X 3/8   (Replaces: 3400015)				$ 6.47
20	N/A		Wiring Harness Parts		Appelez-nous	-
20	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
20	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
20	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
20	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
20	242831		Wire (14 Ga. 200 C Red)				$ 342.23
20	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
20	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
20	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
20	3191048		Cleaner		Appelez-nous	-
20	4456580		Wiring Harness Surface Unit		Appelez-nous	-
20	4456516		Harness, Conduit		Appelez-nous	-
20	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
20	8285104		Rail, Element		Appelez-nous	-
20	3192737		Seal, Heat				$ 35.16
20	3183956		Seal, Switch Cover				$ 41.81
20	3172515		Mtg. Hardware Kit		Appelez-nous	-
20	4455364		Bracket, Support (6)				$ 82.35
20	4456028		Wire, Jumper				$ 22.62
20	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
20	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
20	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
