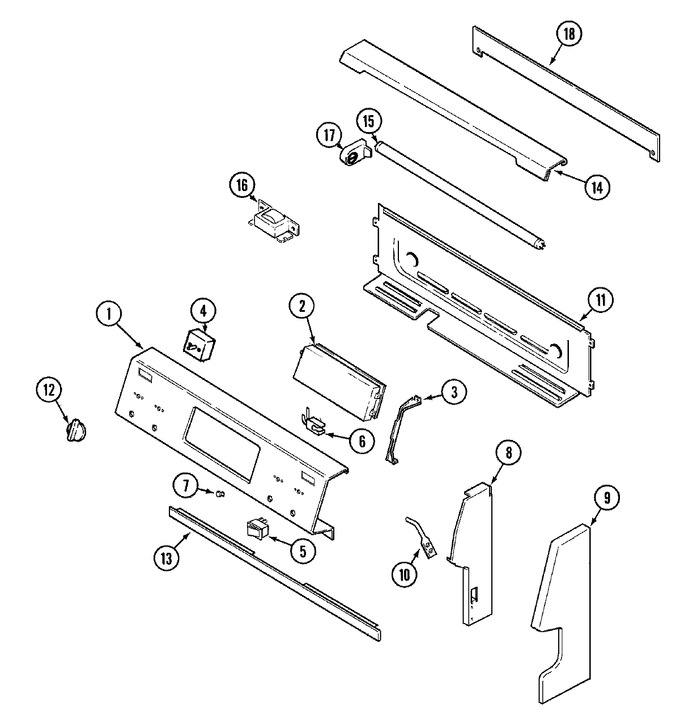

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003585 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 74003569 | Clock (wht) | 10 |
|
- | ||||
| 3 | 74003550 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | 74002144 | Switch, Dual Element | 10 |
|
- | ||||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 5 | 74003577 | Switch, Fluorescent Light(wht) | 10 |
|
- | ||||
| 5 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P101-60) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74003366 | Support, Control Panel (lt) | 10 |
|
- | ||||
| 8 | 74003365 | Support, Control Panel (rt) | 10 |
|
- | ||||
| 9 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 9 | 74003580 | End Cap, Control Pnl (rt-wht) | 10 |
|
- | ||||
| 9 | 74003581 | End Cap, Control Pnl (lt-wht) | 10 |
|
- | ||||
| 9 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 10 | 74003371 | Hinge, Main Top (rod) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74003372 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | WP74003143 | Knob (wht) (Replaces: 74003578) | 10 |
|
$ 41.32 | ||||
| 13 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74003579 | Cover, Light (wht) | 10 |
|
- | ||||
| 15 | WP95292 | Bulb, Fluorescent Li (Replaces: 7407P037-60) | 10 |
|
Immediately | $ 121.45 | |||
| 16 | 74003033 | Ballast | 10 |
|
- | ||||
| 17 | 7408P030-60 | Receptacle, Snap-in (lt) | 10 |
|
- | ||||
| 18 | 74003558 | Shield, Light | 10 |
|
- | ||||
| 18 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 74004557 | Harness, Top/elements | 10 |
|
- | ||||
| 19 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 19 | 74004538 | Harness, Supply Lock Motor | 10 |
|
- | ||||
| 19 | 74003557 | Harness, Sensor/lock | 10 |
|
- | ||||
| 20 | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| 21 | 74003554 | Manual, Use & Care | 10 |
|
- | ||||
| 22 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
