Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651801		Mullion, Almond		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218865802		Panel-top,refr Cavity		Appelez-nous	-
8	218878500		Wiring Harness,control/divider				$ 105.99
8	218909705		Divider,styrofoam ,w/foil Tape				$ 88.57
9	218865600		Panel-bottom,frzr Cavity		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
12	218730000		Deflector-air				$ 57.60
12	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
13	218631001		Cover-air Deflector				$ 55.19
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5308016567		Nut-anchor		Appelez-nous	-
17	5304414816		Control Box		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
21	5303001260		Screw				$ 6.73
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	218272502		Shelf, Sliding, Wire				$ 621.92
25	218227301		Cover-crisper Pan		Appelez-nous	-
26	5304401189		Pan-crisper,full-width		Appelez-nous	-
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo   (Replaces: 218188000)				$ 8.34
81	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22B	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
F21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min   (Replaces: 215846605)			Immediately	$ 28.20
F5	218781004		Heater-mullion		Appelez-nous	-

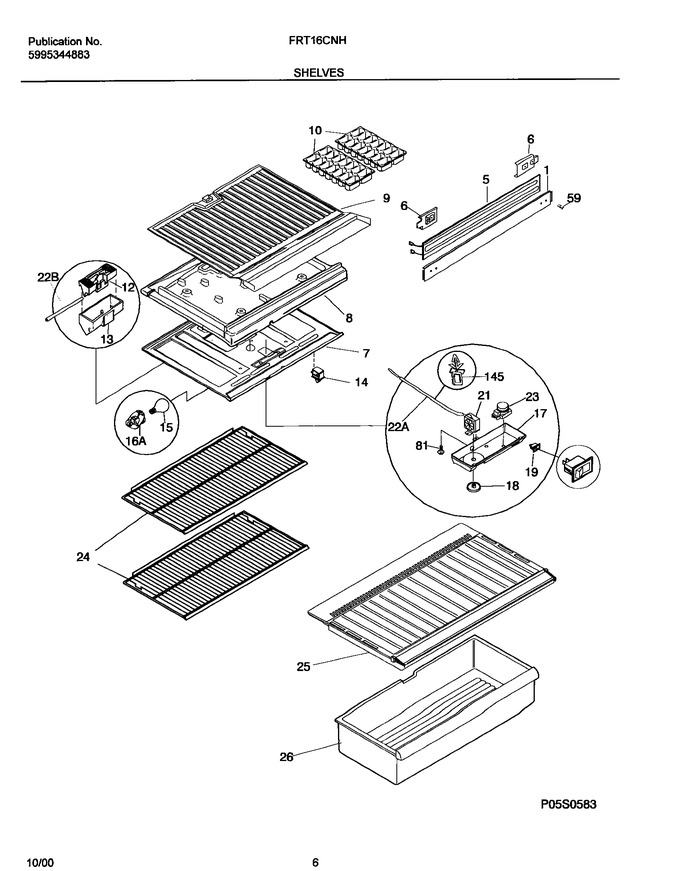

    View Diagram in Separate Window       Print Part List
