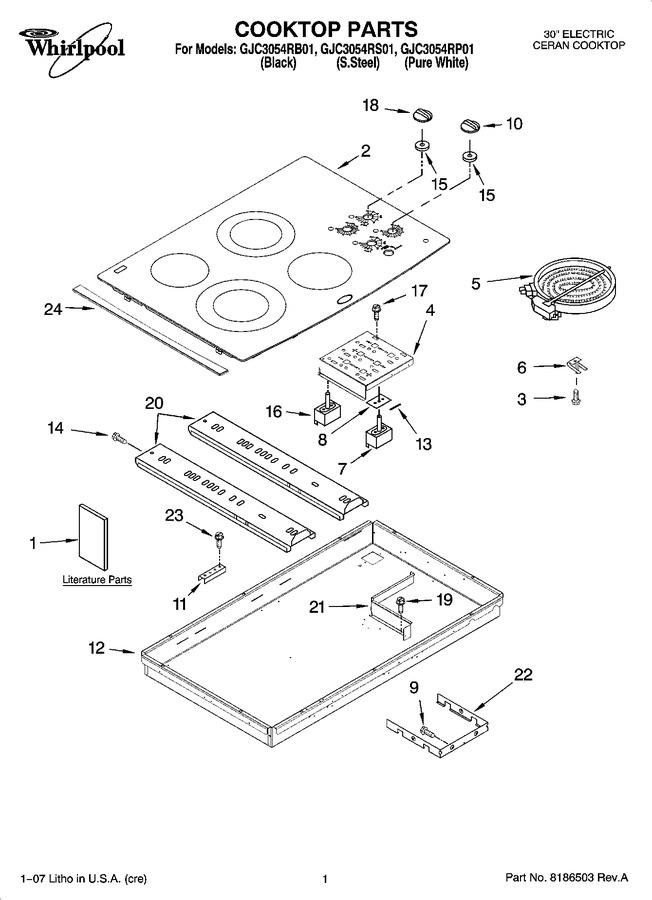

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286066 | Installation Instructions |
|
- | |||||
| 1 | 8286614 | Use & Care Guide |
|
- | |||||
| 1 | 8286339 | Wiring Diagram |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | 9762693 | Cooktop & Bracket Assembly (black) |
|
- | |||||
| 2 | 9762695 | Cooktop & Bracket Assembly (s. Steel) |
|
- | |||||
| 2 | 9762694 | Cooktop & Bracket Assembly (pure White) |
|
- | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8285928 | Bracket, Switch Mounting |
|
- | |||||
| 5 | W10823699 | Element, Surface (1500w - Rf) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 5 | W10823711 | Element, Surface (1200w - Lr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | 8285937 | Element, Surface (2000/1000w Rr) |
|
$ 141.19 | |||||
| 5 | W10823692 | Element, Surface (2500/1200w - Lf) (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 6 | 9759094 | Spring, Locator (8) |
|
$ 6.34 | |||||
| 7 | WP3191049 | Switch, Infinite (silver) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | WP3191050 | Switch, Infinite (yellow) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 7 | WP9759474 | Switch, Infinite (dual (2)) (Replaces: 9759474) |
|
Immediately | $ 106.42 | ||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 9 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 10 | 8286043WH | Knob, Control (4) (white) |
|
$ 19.87 | |||||
| 10 | WP8286043BL | Knob, Control (4) (black) (Replaces: 8286043BL) |
|
$ 20.30 | |||||
| 11 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 12 | 8285862 | Box, Burner |
|
- | |||||
| 13 | W10491984 | Seal, Switch (Replaces: 3192439) |
|
$ 10.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Switch Shaft (4) |
|
$ 45.00 | |||||
| 16 | WP9762441 | Switch, Rotary (accusimer) (Replaces: 8285139) |
|
$ 132.81 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 8286044BT | Knob, Accusimer (biscuit) |
|
- | |||||
| 18 | 8286044BL | Knob, Accusimer (black) |
|
$ 17.81 | |||||
| 18 | 8286044BL | Knob, Accusimer (white) (Replaces: 8286044WH) |
|
$ 17.81 | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 20 | 8286585 | Rail, Element |
|
- | |||||
| 21 | 3191839 | Seal |
|
- | |||||
| 21 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 21 | 8285949 | Shield, Heat Control |
|
- | |||||
| 22 | 8286426 | Seal |
|
- | |||||
| 22 | 8286396 | Shield, Heat |
|
- | |||||
| 23 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 24 | 8285991 | Trim, Cooktop (s.steel Mdl Only) (rh) |
|
- | |||||
| 24 | 3172515 | Trim, Cooktop (s.steel Mdl Only) Following Parts Not Illustrated (mtg. Hardware Kit) |
|
- | |||||
| 24 | 4455364 | Bracket, Support (6) |
|
$ 82.35 | |||||
| 24 | 8285990 | Trim, Cooktop (s.steel Mdl Only) (lh) |
|
- | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 8286408 | Wiring Harness Surface Unit |
|
- | ||||||
| 3191048 | Cleaner |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 8286347 | Harness, Light |
|
- | ||||||
| 8286413 | Harness, Conduit |
|
- |
