SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Control Panel/top Assembly


04 - Door/drawer


05 - Supplemental Information


06 - Wiring Information

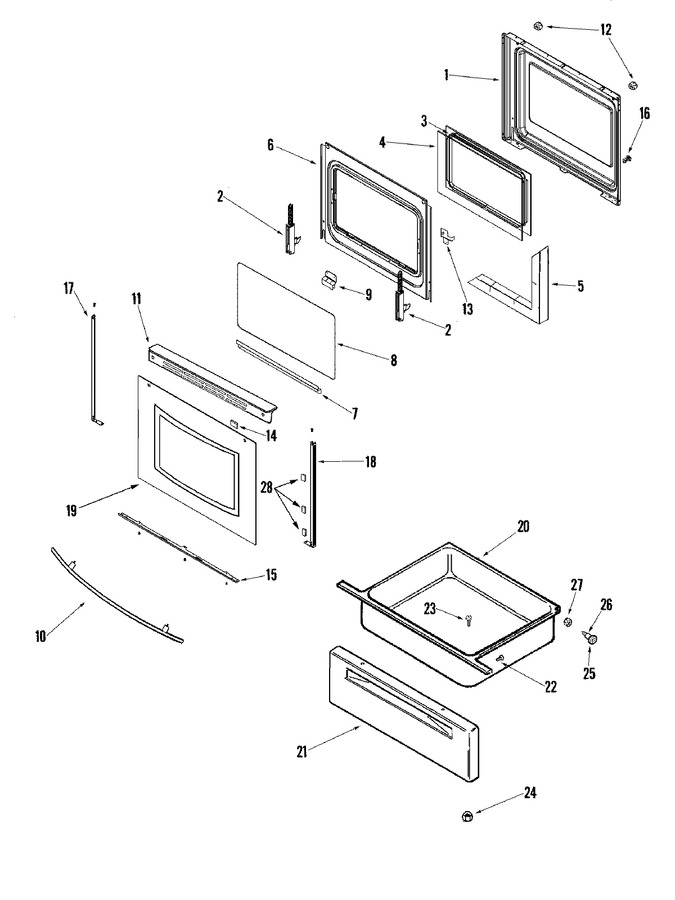

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008742		Lining, Door	10	Appelez-nous	-
2	74010546		Hinge, Door   (Replaces: 74008743)	10		Immediately	$ 77.34
3	74003644		Frame, Glass	10	Appelez-nous	-
4	74003645		Glass, Inner	10		Immediately	$ 162.53
5	74003647		Insulation, Oven Door	10	Appelez-nous	-
6	74008744		Baffle, Door	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74008745		Retainer, Door Glass (lwr)	10	Appelez-nous	-
8	74003649		Glass, Door	10	Appelez-nous	-
9	74008746		Retainer, Door Glass (upr)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74008920		Handle, Door	10	Appelez-nous	-
11	74008890		Trim, Top (blk)	10	Appelez-nous	-
11	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
12	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
13	74008749		Bracket, Handle (lt)	10	Appelez-nous	-
13	74008750		Bracket, Handle (rt)	10	Appelez-nous	-
14	WP74004224		Tape, Single Sided (wht)   (Replaces: 74004224)	10			$ 10.53
15	74008889		Trim, Bottom (blk)	10	Appelez-nous	-
16	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
17	74010560		Trim, Side (blk)	13	Appelez-nous	-
17	74008902		Trim, Side (blk-lt)	10	Appelez-nous	-
18	74010560		Trim, Side (blk)	13	Appelez-nous	-
18	74008901		Trim, Side (blk-rt)	10	Appelez-nous	-
19	74008686		Glass, Door (blk)	10	Appelez-nous	-
20	74008339		Drawer, Warming Assy.	10	Appelez-nous	-
20	74009105		Shield, Heat (drawer)	10	Appelez-nous	-
21	74008885		Panel, Drawer (blk)	10	Appelez-nous	-
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
23	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
24	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
25	W10124350		Not Required Part Or See Note	10	Appelez-nous	-
26	W10124350		Not Required Part Or See Note	10	Appelez-nous	-
27	W10124350		Not Required Part Or See Note	10	Appelez-nous	-
28	74009025		Tape, Dbl Sided (blk)	10			$ 8.60

    View Diagram in Separate Window       Print Part List
