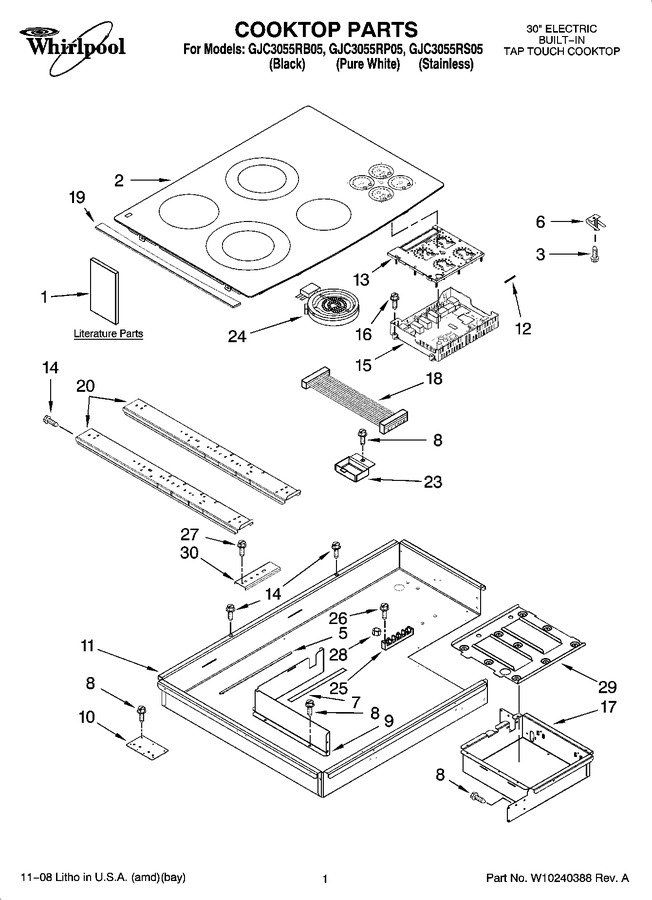

01 - Cooktop Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10162165		Use & Care Guide		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8286066		Installation Instructions (cooktop)		Appelez-nous	-
1	8304571		Installation Instructions (undercounter Oven)		Appelez-nous	-
1	8286285		Tech Sheet		Appelez-nous	-
2	W10140993		Cooktop, Glass (black)		Appelez-nous	-
2	W10140994		Cooktop, Glass (stainless)		Appelez-nous	-
2	8286966		Cooktop, Glass (white)				$ 363.90
3	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
5	8285240		Seal, Heat				$ 65.35
6	9759094		Spring, Locator (8)				$ 6.34
7	8285426		Seal, Foam				$ 37.84
8	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
9	8286577		Wall, Inside		Appelez-nous	-
10	8286535		Bracket, Bottom				$ 41.45
11	8286554		Box, Burner		Appelez-nous	-
12	W10491984		Seal, Limiter (4)   (Replaces: 3192439)				$ 10.33
13	8286134		Control, Burner Module (white)		Appelez-nous	-
13	8286133		Control, Burner Module (black/stainless)				$ 323.86
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	8286643		Control, Appliance Manager				$ 297.43
16	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
17	8286575		Box, Control		Appelez-nous	-
18	W10155097		Cable Assembly   (Replaces: 8285319)				$ 74.66
19	W10142237		Trim, Cooktop (stainless Only) (left)				$ 109.73
19	W10142238		Trim, Cooktop (stainless Only) (right)				$ 109.60
20	9763517		Rail, Element				$ 62.80
23	W11819303		Cover, Harness   (Replaces: 8285593)		Appelez-nous	-
24	WP8285230		Element, Surface (1200w Rf)   (Replaces: 8285230)			Immediately	$ 215.70
24	WP4453907		Element, Surface (1500w Lr)   (Replaces: 4453907)			Immediately	$ 256.28
24	WP8285938		Element, Surface (2000/1000w Rr)   (Replaces: 8285938)				$ 258.77
24	8285845		Element, Surface (2500/1200w Lf)				$ 171.12
25	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
26	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
27	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
28	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 6.47
29	9757815		Support, Module				$ 43.94
30	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 105.67
	8286379		Conduit Assembly		Appelez-nous	-
	WP3400015		Screw, Ground   (Replaces: 3400015)				$ 6.47
	8286382		Clip, Harness		Appelez-nous	-
	8285951		Harness, Main		Appelez-nous	-
