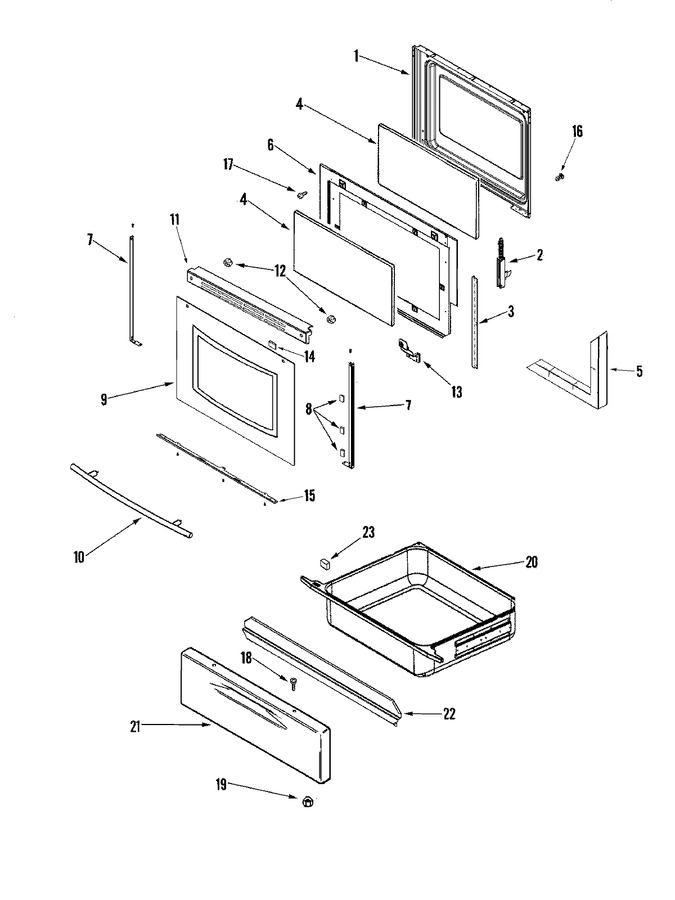

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008926		Lining, Door	10	Appelez-nous	-
2	74010546		Hinge, Door	10		Immediately	$ 77.34
3	74011458		Bracket, Inner Glass	10	Appelez-nous	-
4	74003645		Glass, Inner	10		Immediately	$ 162.53
5	74003647		Insulation, Oven Door	10	Appelez-nous	-
6	3601F380-51		Baffle/insulation Retainer	10			$ 25.83
7	74010560		Trim, Side (blk)	10	Appelez-nous	-
8	74009025		Tape, Dbl Sided (blk)	10			$ 8.60
9	74008686		Glass, Door (blk)	10	Appelez-nous	-
10	74008920		Handle, Door	10	Appelez-nous	-
11	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
11	74008890		Trim, Top (blk)	10	Appelez-nous	-
12	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	10		Immediately	$ 6.98
13	74009412		Bracket, Door Handle (lt)	10	Appelez-nous	-
13	74009413		Bracket, Door Handle (rt)	10	Appelez-nous	-
14	WP74004224		Tape, Single Sided (wht)   (Replaces: 74004224)	10			$ 10.53
15	74008889		Trim, Bottom (blk)	10	Appelez-nous	-
16	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
19	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
20	74008339		Drawer, Warming Assy.	10	Appelez-nous	-
21	74008885		Panel, Drawer (blk)	10	Appelez-nous	-
21	W10163038		Panel, Drawer (blk)	14			$ 18.28
22	74009105		Shield, Heat (drawer)	10	Appelez-nous	-
23	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
