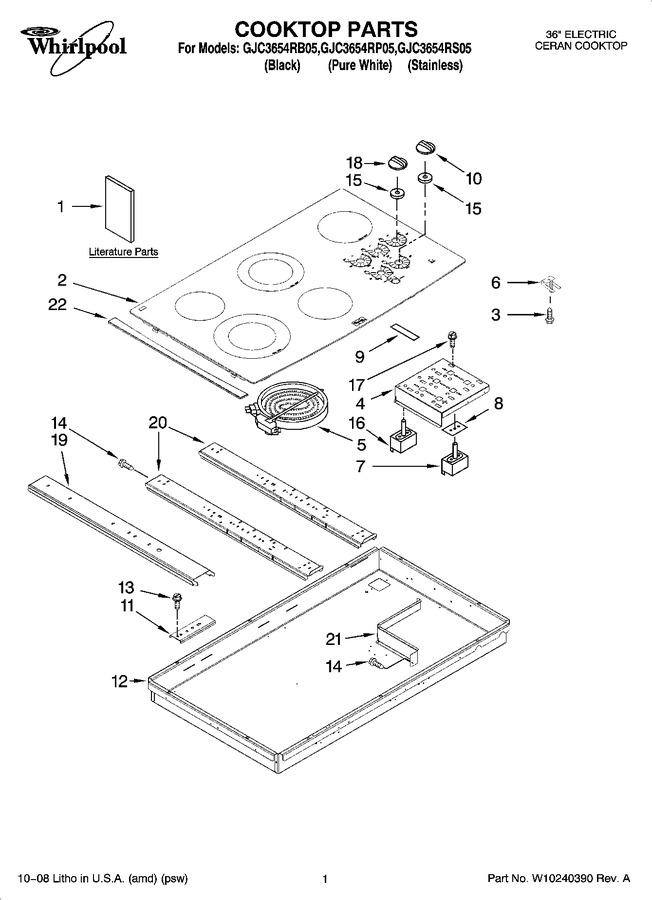

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10162165 | Use & Care Guide |
|
- | |||||
| 1 | 8286340 | Wiring Diagram |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 8286066 | Installation Instructions (cooktop) |
|
- | |||||
| 1 | 8304571 | Installation Instructions (built-in Oven) |
|
- | |||||
| 2 | 8286969 | Cooktop & Bracket Assembly (white) |
|
$ 438.88 | |||||
| 2 | W10141001 | Cooktop & Bracket Assembly (black) |
|
- | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8285929 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 8285937 | Element, Surface (2000/1000w - Cr) |
|
$ 141.19 | |||||
| 5 | WP8523700 | Element, Surface (100w Rr) (Replaces: 8523700) |
|
Immediately | $ 159.08 | ||||
| 5 | W10823692 | Element, Surface (2500/1200w - Lf) (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 5 | W10823711 | Element, Surface (1200w - Lr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | W10823699 | Element, Surface (1500w - Cf) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 6 | 9759094 | Spring Locator (10) |
|
$ 6.34 | |||||
| 7 | WP9759474 | Switch, Infinite (lf & Cr Burner) (Replaces: 9759474) |
|
Immediately | $ 106.42 | ||||
| 7 | WP3191049 | Switch, Infinite (lr, Cf Burner) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | 8286517 | Switch, Infinite (rr) |
|
- | |||||
| 8 | 3183956 | Seal, Switch Cover (6) |
|
$ 41.81 | |||||
| 9 | W10491984 | Seal, Limiter (5) (Replaces: 3192439) |
|
$ 10.33 | |||||
| 10 | WP8286043BL | Knob, Control (4) (black) (Replaces: 8286043BL) |
|
$ 20.30 | |||||
| 10 | 8286043WH | Knob, Control (4) (white) |
|
$ 19.87 | |||||
| 11 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 12 | 8286556 | Box, Burner |
|
- | |||||
| 13 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Infinite Switch (6) |
|
$ 45.00 | |||||
| 16 | WP9762441 | Switch, Rotary (accusimer) (Replaces: 9762441) |
|
$ 132.81 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 8286044BL | Knob, Accusimer (white) (Replaces: 8286044WH) |
|
$ 17.81 | |||||
| 18 | 8286044BL | Knob, Accusimer (black) |
|
$ 17.81 | |||||
| 19 | 8286345 | Rail, Element |
|
- | |||||
| 20 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 21 | W10180226 | Control, Heat Shield |
|
- | |||||
| 22 | W10142238 | Trim, Cooktop (stainless Only) (right) |
|
$ 109.60 | |||||
| 22 | W10142237 | Trim, Cooktop (stainless Only) (left) |
|
$ 109.73 | |||||
| 8286348 | Harness, Light |
|
- | ||||||
| 8286415 | Harness, Conduit |
|
- | ||||||
| W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | |||||
| 9760880 | Harness, Main |
|
- | ||||||
| WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | |||||
| WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.47 |
