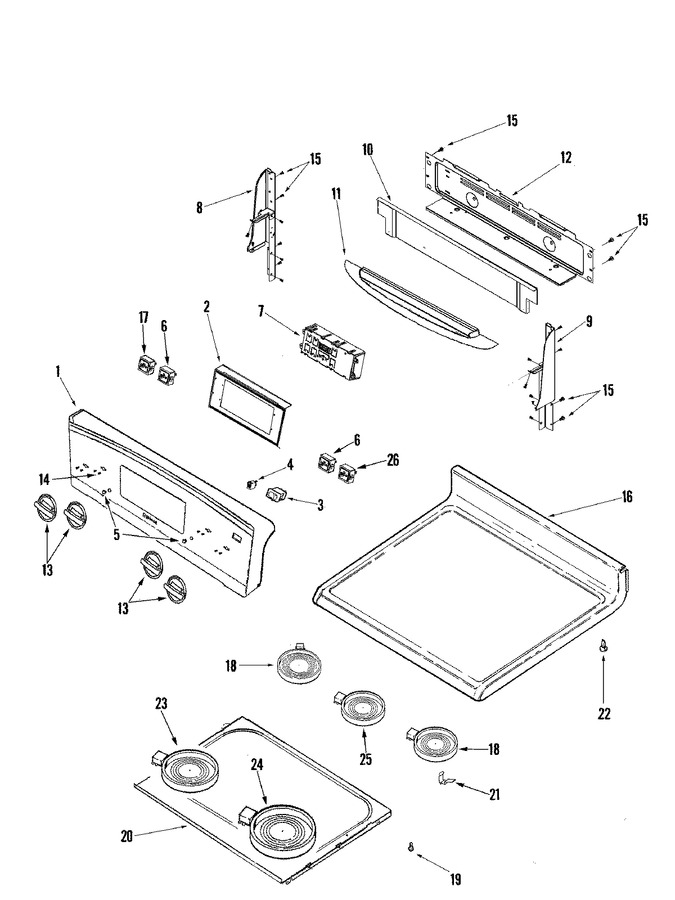

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011975 | Bkgd Panel/switch Asy (wht) | 10 |
|
- | ||||
| 2 | 74011982 | Bracket, Control | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 74008717 | Switch, Rocker (wht) | 10 |
|
$ 72.68 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 4 | 7407P100-60 | Light, Indicator | 10 |
|
- | ||||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | 74011983 | Control | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | W10185287 | Control, Burner (custom) | 15 |
|
$ 166.92 | ||||
| 8 | 74009077 | End Cap (rt-wht) | 10 |
|
- | ||||
| 9 | 74009079 | End Cap (lt-wht) | 10 |
|
- | ||||
| 10 | 74009444 | Shield, Vent | 10 |
|
- | ||||
| 11 | 74009203 | Shield, Heat Visor (wht) | 10 |
|
- | ||||
| 12 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 13 | WP74008921 | Knob (Replaces: 74008921) | 10 |
|
Immediately | $ 13.95 | |||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 74011972 | Top Assembly (fr Wht) | 10 |
|
- | ||||
| 17 | WP74010824 | Switch, Element (lrg) (Replaces: 74010824) | 10 |
|
Immediately | $ 100.92 | |||
| 18 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | 74008900 | Bottom, Burner Box | 10 |
|
- | ||||
| 21 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 10 |
|
$ 10.51 | ||||
| 22 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 | ||||
| 23 | W10823692 | Element, Dual (2400w) (Replaces: 74008897) | 10 |
|
Immediately | $ 204.83 | |||
| 24 | W10823720 | Element (2700w) (Replaces: 74011218) | 10 |
|
Immediately | $ 302.91 | |||
| 25 | 74008898 | Element, Warming | 10 |
|
$ 73.51 | ||||
| 26 | 74011595 | Control, Burner (custom) | 10 |
|
- |
