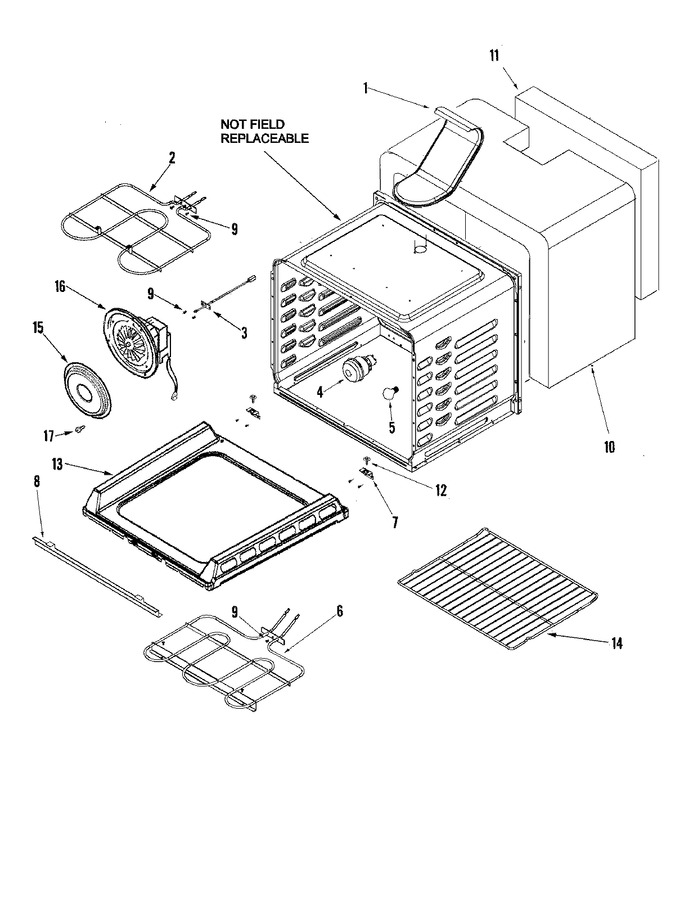

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008691		Vent, Oven	10	Appelez-nous	-
2	WP7406P493-60		Element, Broil   (Replaces: 74011910)	10		Immediately	$ 178.99
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	12001656		Oven Sensor Replacement (long)	10		Immediately	$ 39.55
4	WP74011278		Light, Oven Asy.   (Replaces: 74011278)	10			$ 101.56
4	74011299		Lens, Light Bulb	10	Appelez-nous	-
5	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
6	WPW10276482		Element, Bake (3600w)   (Replaces: 74011117)	10		Immediately	$ 146.10
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74008694		Support, Oven Bottom (rear)	10	Appelez-nous	-
8	74008695		Support, Oven Bottom (front)	10	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74008700		Insulation, Wrapper	10			$ 54.48
11	74008698		Insulation, Back	10	Appelez-nous	-
12	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
13	WPW10211368		Bottom, Oven   (Replaces: 74008741)	10		Immediately	$ 287.07
14	WP74008763		Rack, Oven   (Replaces: 74008763)	10			$ 192.14
15	74005401		Screw	10			$ 5.33
15	74005783		Cover, Convect	10	Appelez-nous	-
16	74009165		Fan, Convection Asy.	10	Appelez-nous	-
17	74005401		Screw	10			$ 5.33
