SELECT A DIAGRAM

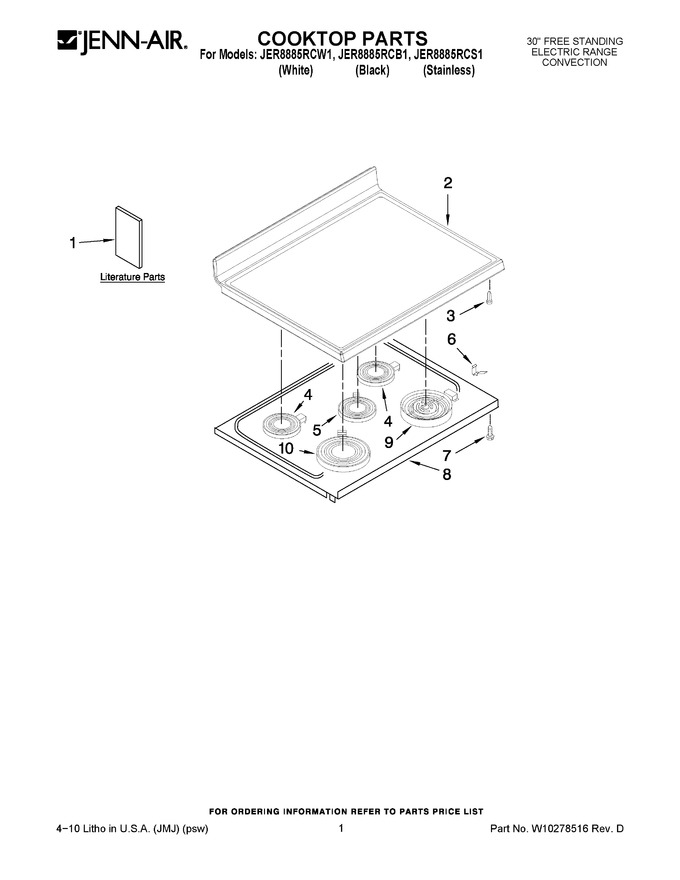

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8113P713-60		Use & Care Guide		Appelez-nous	-
1	8119P371-60		Wiring Diagram		Appelez-nous	-
1	8101P506-60		Installation Instructions		Appelez-nous	-
1	9762761		Brochure, Safe Tip		Appelez-nous	-
2	W10217623		Cooktop (black)		Appelez-nous	-
2	W10217631		Cooktop (white)		Appelez-nous	-
3	74008761		Spacer Snap-in (4)   (Replaces: 8010P149-60)				$ 7.55
4	W10823711		Element Lr/rr (2)   (Replaces: 8523698)			Immediately	$ 183.95
5	7406P354-60		Element, Warm		Appelez-nous	-
6	74007134		Spring, Element   (Replaces: 7803P087-60)				$ 10.51
7	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
8	4011F497-51		Bottom, Burner Box		Appelez-nous	-
9	W10823720		Element 2700w (rf)   (Replaces: 7406P441-60)			Immediately	$ 302.91
10	W10823724		Element 2500w (lf)   (Replaces: 7406P492-60)			Immediately	$ 333.25

    View Diagram in Separate Window       Print Part List
