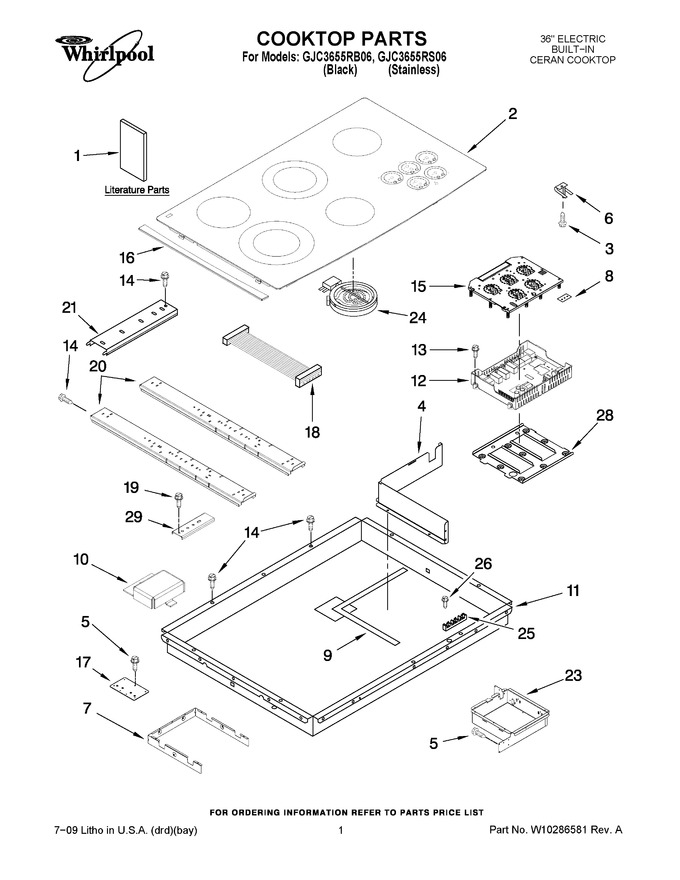

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286066 | Installation Instructions |
|
- | |||||
| 1 | 8286286 | Tech Sheet |
|
- | |||||
| 1 | W10162165 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 8304571 | Installation Instructions (undercounter) |
|
- | |||||
| 2 | W10239872 | Cooktop, Glass (stainless) |
|
- | |||||
| 2 | W10239871 | Cooktop, Glass (black) |
|
$ 348.91 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8286578 | Wall, Inside |
|
- | |||||
| 5 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 6 | 9759094 | Spring Locator (10) |
|
$ 6.34 | |||||
| 7 | 9760762 | Shield, Heat |
|
- | |||||
| 8 | W10491984 | Seal, Switch (Replaces: 3192439) |
|
$ 10.33 | |||||
| 9 | 8285242 | Seal, Heat Shield |
|
$ 63.49 | |||||
| 10 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 11 | 8286555 | Box, Burner |
|
- | |||||
| 12 | 8286644 | Appliance Manager, Module |
|
$ 263.69 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8286135 | Board, Control (black) |
|
- | |||||
| 16 | W10142237 | Trim, Cooktop (stainless Only) (left) |
|
$ 109.73 | |||||
| 16 | W10142238 | Trim, Cooktop (stainless Only) (right) |
|
$ 109.60 | |||||
| 17 | 8286535 | Bracket, Bottom |
|
$ 41.45 | |||||
| 18 | W10154996 | Cable Assembly |
|
$ 17.48 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | 9763517 | Rail, Element (2) |
|
$ 62.80 | |||||
| 21 | 8286345 | Rail, Element (1) |
|
- | |||||
| 23 | 8286576 | Box, Touch Control |
|
- | |||||
| 24 | WP8285938 | Element, Surface (2000/1000w Cr) (Replaces: 8285938) |
|
$ 258.77 | |||||
| 24 | WP4453907 | Element, Surface (1500w Rr/cf) (Replaces: 4453907) |
|
Immediately | $ 256.28 | ||||
| 24 | 8285845 | Element, Surface (2500/1200w Lf) |
|
$ 171.12 | |||||
| 24 | WP8285230 | Element, Surface (1200w Lr) (Replaces: 8285230) |
|
Immediately | $ 215.70 | ||||
| 25 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 26 | WP3196163 | Screw (Replaces: 3196163) |
|
$ 6.26 | |||||
| 28 | 4456922 | Support, Module |
|
- | |||||
| 29 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 |
