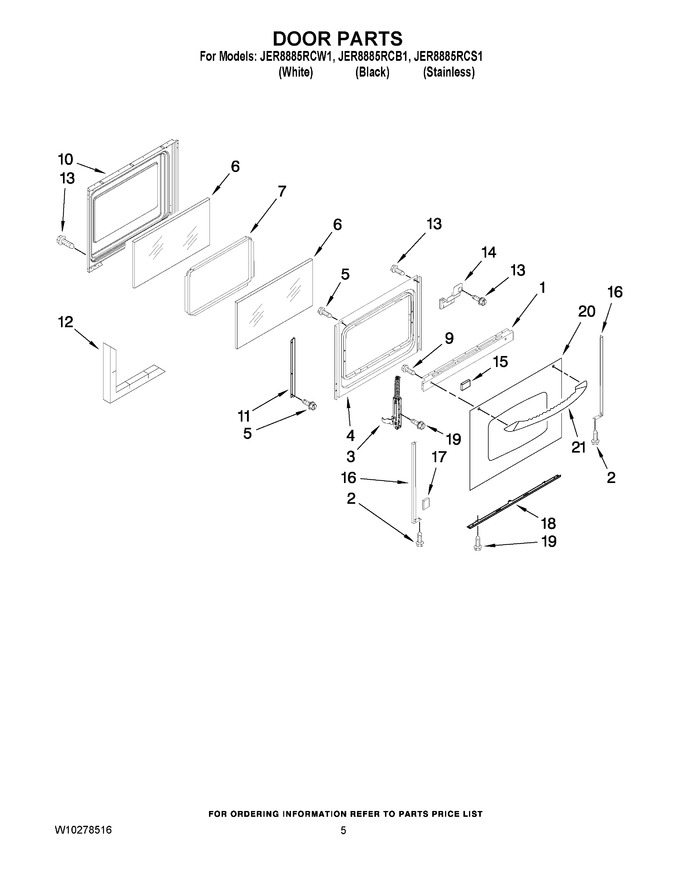

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F139-71		Trim, Door Top (white)		Appelez-nous	-
1	3608F139-70		Trim, Door Top (black)				$ 12.86
2	WP3400832		Screw, Handle (black)   (Replaces: 3196168)			Immediately	$ 6.98
2	3196166		Screw, Handle (white)				$ 6.31
3	74010546		Hinge, Door (2)   (Replaces: 7106P124-60)			Immediately	$ 77.34
4	3601F380-51		Baffel, Retainer				$ 25.83
5	W11233072		Screw 8ab 1/2 (6)   (Replaces: 3196178)			Immediately	$ 12.62
6	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 162.53
7	3801F886-51		Frame, Glass Inner				$ 38.25
9	WP74006515		Screw, Mounting   (Replaces: 7101P681-60)				$ 7.29
10	2402W297-19		Lining, Door				$ 152.41
11	3801F886-51		Bracket, Glass (2)				$ 38.25
12	7002P246-60		Insulation, Door				$ 58.49
13	W11233072		Screw (8)   (Replaces: 3196178)			Immediately	$ 12.62
14	3801P858-45		Bracket, Handle (left)				$ 6.01
14	3801P857-45		Bracket, Handle (right)		Appelez-nous	-
15	W10208309		Tape (white)		Appelez-nous	-
16	3608F126-71		Trim, Door Side (white)				$ 34.81
16	3608F126-70		Trim, Door Side (black)				$ 58.04
17	W10208307		Tape, Double Sided (black)		Appelez-nous	-
17	W10208308		Tape, Double Sided (white)		Appelez-nous	-
18	3608F092-70		Trim, Door Bottom (black)				$ 66.03
18	3608F092-71		Trim, Door Bottom (white)				$ 55.22
19	WP4159193		Screw 10-24x5/16   (Replaces: 7101P282-60)				$ 4.29
20	W10160908		Glass, Door (black(order Item No.15 When Replacing Door Glass))				$ 168.27
20	W10160906		Glass, Door (white)				$ 280.62
21	WP74011767		Handle, Door (black)   (Replaces: 7701P516-60)				$ 225.61
21	7701P467-60		Handle, Door (white)		Appelez-nous	-
21	7701P526-60		Handle, Door (stainless Steel)				$ 129.23
