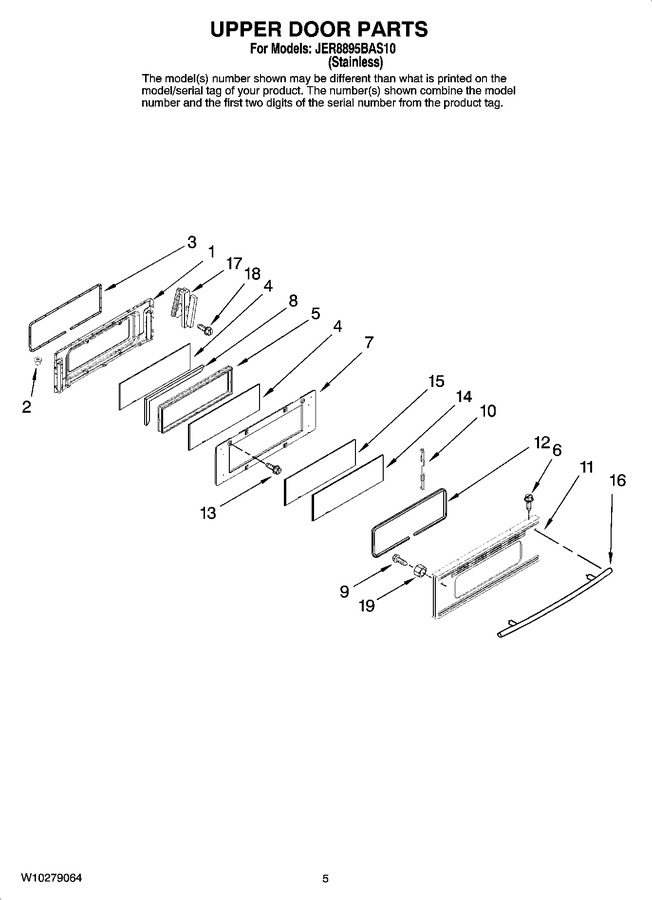

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2402W248-19		Lining, Door		Appelez-nous	-
2	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
3	WP7201P091-60		Gasket, Door   (Replaces: 7201P091-60)				$ 137.97
4	7902P521-60		Glass, Inner (2)		Appelez-nous	-
5	7907P034-60		Frame, Glass		Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
7	3601F354-45		Baffle, Door				$ 66.15
8	7002P488-60		Insulation, Door		Appelez-nous	-
9	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
10	3804F184-45		Retainer, Glass		Appelez-nous	-
11	7760P149-60		Panel, Door		Appelez-nous	-
12	WP74009029		Gasket, Window   (Replaces: 7201P141-60)			Immediately	$ 145.22
13	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
14	7902P753-60		Glass, Outer Door				$ 55.64
15	7902P542-60		Glass, Inner Door		Appelez-nous	-
16	7701P467-60		Handle, Door		Appelez-nous	-
17	7106P110-60		Hinge, Door (2)		Appelez-nous	-
18	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
19	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 14.94
