View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

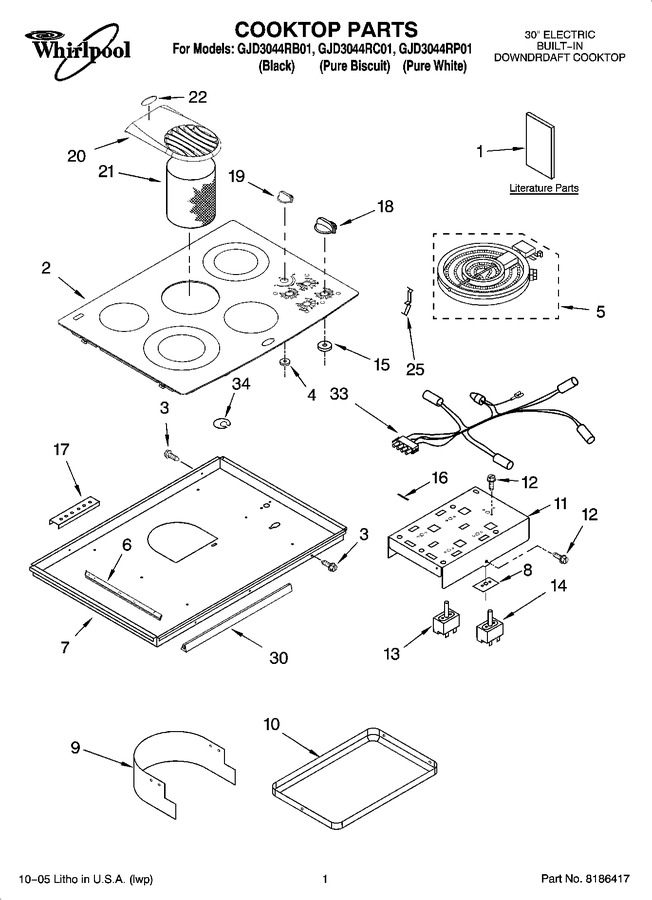

01 - Cooktop Parts
02 - Blower Unit Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286616 | Owners Manual Safe Cooking Tips |
|
- | |||||
| 1 | 9759133 | French |
|
- | |||||
| 1 | 8286553 | Installation Instructions |
|
- | |||||
| 1 | 8286343 | Wiring Diagram |
|
- | |||||
| 1 | 3191638 | English |
|
- | |||||
| 2 | W10239873 | Cooktop, Glass & Bracket Assembly (black) (Replaces: 9762696) |
|
- | |||||
| 2 | 9762698 | Cooktop, Glass & Bracket Assembly (pure Biscuit) |
|
- | |||||
| 2 | 9762697 | Cooktop, Glass & Bracket Assembly (pure White) |
|
- | |||||
| 3 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | WP3188425 | Seal, Switch 2`` (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | W10823711 | Element, Surface (lr 1200w) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | W10823692 | Element, Surface (l.f. 2500/1200w) (Replaces: 4453909) |
|
Immediately | $ 204.83 | ||||
| 5 | 8285937 | Element, Surface (r.r. 2000/1000w) |
|
$ 141.19 | |||||
| 5 | W10823699 | Element, Surface (rf 1500w) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 6 | 8286054 | Rail, Element (left Hand) |
|
- | |||||
| 6 | 8285933 | Rail, Element (right Hand) |
|
- | |||||
| 7 | 8285809 | Box, Burner |
|
- | |||||
| 8 | 3183956 | Seal, Switch Cvr |
|
$ 41.81 | |||||
| 9 | 8285934 | Shield, Vent |
|
- | |||||
| 9 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 10 | 3190656 | Drip Bowl, Grease |
|
- | |||||
| 11 | 4455354 | Bracket, Control Mounting |
|
- | |||||
| 12 | WP486579 | Screw, 8-32 X 7/32 (Replaces: 311865) |
|
$ 6.61 | |||||
| 13 | WP4456836 | Switch, Speed Control (Replaces: 4456836) |
|
Immediately | $ 158.17 | ||||
| 14 | WP9759474 | Switch, Infinite (rr & Lf) (Replaces: 9759474) |
|
Immediately | $ 106.42 | ||||
| 14 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 15 | 8285469 | Seal, Switch |
|
$ 45.00 | |||||
| 16 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 17 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 18 | 8286043BT | Knob, Control (biscuit) |
|
$ 91.99 | |||||
| 18 | WP8286043BL | Knob, Control (black) (Replaces: 8286043BL) |
|
$ 20.30 | |||||
| 18 | 8286043WH | Knob, Control (white) |
|
$ 19.87 | |||||
| 19 | 8286045WH | Knob, Downdraft (white) |
|
- | |||||
| 19 | 8286045BL | Knob, Downdraft (black) |
|
- | |||||
| 19 | 8286045BT | Knob, Downdraft (biscuit) |
|
- | |||||
| 20 | 8285115 | Grille, Air (black) |
|
- | |||||
| 20 | 8285229 | Grille, Air (biscuit) |
|
- | |||||
| 20 | 8285228 | Grille, Air (pure White) |
|
- | |||||
| 21 | 3192530 | Filter, Grease |
|
$ 56.78 | |||||
| 22 | 8523552 | Badge |
|
- | |||||
| 25 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 30 | 3193032 | Gasket, Vent Shield |
|
- | |||||
| 33 | 8286055 | Light, Hot Surface Indicator |
|
$ 81.82 | |||||
| 34 | 3193094 | Plate, Cover |
|
- |
