SELECT A DIAGRAM

01 - Cooktop Parts

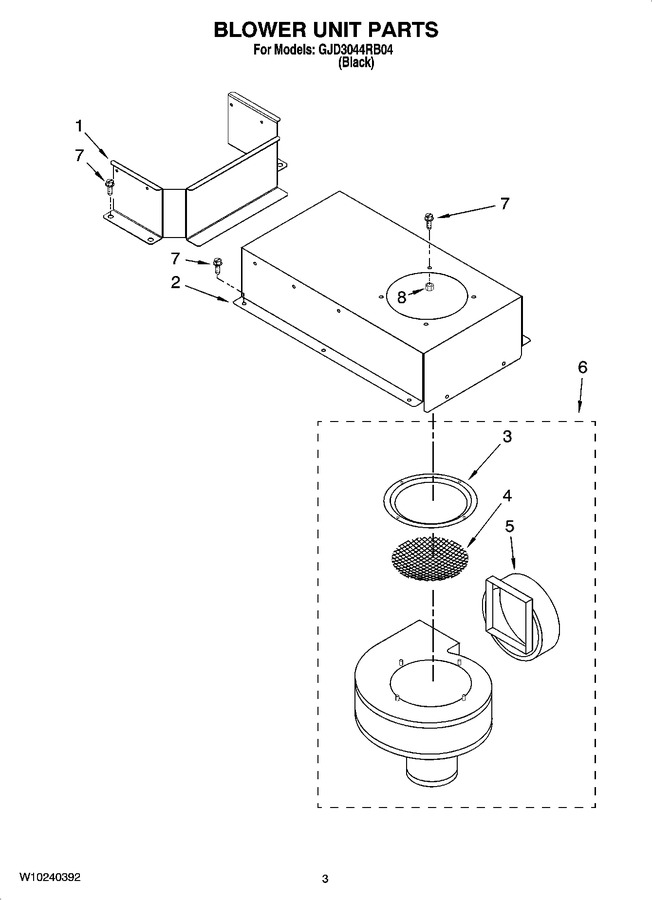

02 - Blower Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169759		Bracket, Shield				$ 33.32
2	3192403		Bracket, Blower Mounting		Appelez-nous	-
3	9760484		Ring, Inlet		Appelez-nous	-
4	9760485		Screen, Inlet		Appelez-nous	-
5	9760483		Vent, Adapter		Appelez-nous	-
6	W10109930		Blower Motor Assembly,(includes Fan Assembly)				$ 788.72
7	WP308685		Screw   (Replaces: 3367670)			Immediately	$ 7.08
8	WP488130		Nut   (Replaces: 488130)				$ 6.27
	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 105.67
	8286407		Harness, Ceran Downdraft		Appelez-nous	-
	4456859		Harness, Blower/ Switch		Appelez-nous	-
	WP98997		Clip   (Replaces: 98997)				$ 9.98
	9760671		Strain Relief		Appelez-nous	-
	8286416		Conduit, Downdraft		Appelez-nous	-
	WP3400015		Screw   (Replaces: 3400015)				$ 6.47

    View Diagram in Separate Window       Print Part List
