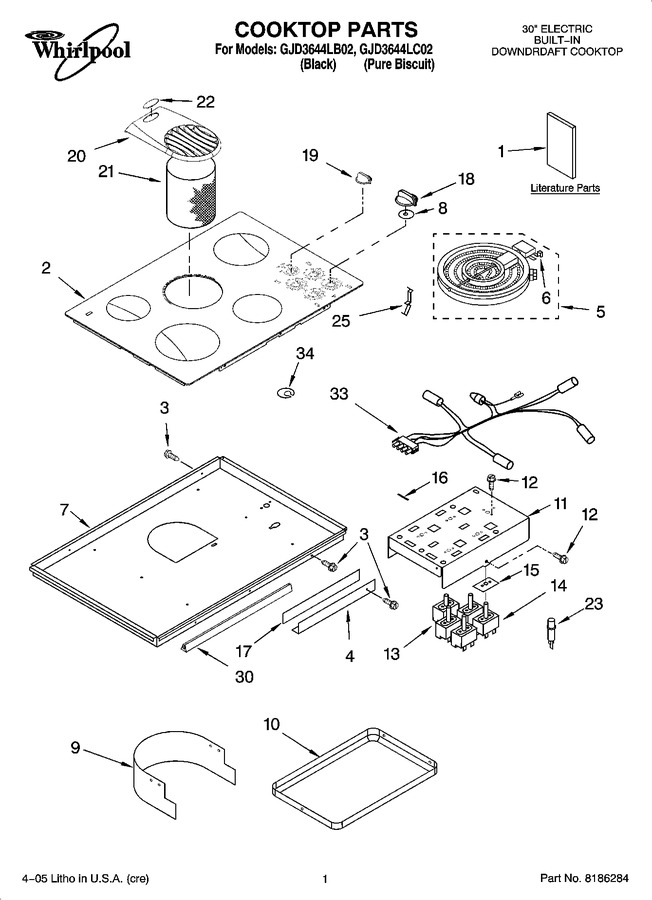

01 - Cooktop Parts


02 - Blower Unit Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760480		Wiring Diagram		Appelez-nous	-
1	8285454		Use & Care Guide		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	8285116		Installation Instructions		Appelez-nous	-
2	8285237		Cooktop, Glass & Bracket Assembly (black)		Appelez-nous	-
2	8285239		Cooktop, Glass & Bracket Assembly (pure Biscuit)		Appelez-nous	-
3	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
4	4455364		Bracket, Support				$ 82.35
5	W10823711		Element, Surface (lr 1200w)   (Replaces: 8523698)			Immediately	$ 183.95
5	W10823692		Element, Surface (l.f. 2400w/1200w)   (Replaces: 4453909)			Immediately	$ 204.83
5	W10823698		Element, Surface (rr 1800w)   (Replaces: 8523696)			Immediately	$ 175.61
5	W10823699		Element, Surface (rf 1500w)   (Replaces: 8523697)			Immediately	$ 145.67
6	3192520		Rail, Element (right Hand)		Appelez-nous	-
6	3192521		Rail, Element (left Hand)		Appelez-nous	-
7	4456523		Box, Burner		Appelez-nous	-
8	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
9	4455802		Shield, Vent		Appelez-nous	-
10	3190656		Drip Bowl, Grease		Appelez-nous	-
11	3183956		Seal, Switch Cover				$ 41.81
11	4455354		Bracket, Control Mounting		Appelez-nous	-
12	WP486579		Screw, 8-32 X 7/32   (Replaces: 311865)				$ 6.61
13	3190639		Switch, Speed Control				$ 62.56
14	9759473		Switch, Infinite (dual)		Appelez-nous	-
14	8285291		Switch, Infinite (silver)		Appelez-nous	-
14	8285292		Switch, Infinite (yellow)		Appelez-nous	-
15	8285469		Seal, Switch				$ 45.00
16	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.33
17	4457298		Seal, Foam				$ 5.58
18	8522567		Knob, Control (pure Biscuit)				$ 15.97
18	WP8522566		Knob, Control (black)   (Replaces: 8522566)				$ 19.11
19	8285357		Knob, Downdraft (pure Biscuit)		Appelez-nous	-
19	8285355		Knob, Downdraft (black)		Appelez-nous	-
20	8285115		Grille, Air (black)		Appelez-nous	-
20	8285229		Grille, Air (biscuit)		Appelez-nous	-
21	3192530		Filter, Grease				$ 56.78
22	8523552		Nameplate		Appelez-nous	-
23	3193012		Light, Indicator				$ 99.17
25	9759094		Spring, Locator				$ 6.34
25	WP486754		Screw   (Replaces: 486754)				$ 6.75
30	3193032		Gasket, Vent Shield		Appelez-nous	-
33	3191343		Light, Hot Surface Indicator		Appelez-nous	-
34	3193094		Plate, Cover		Appelez-nous	-
