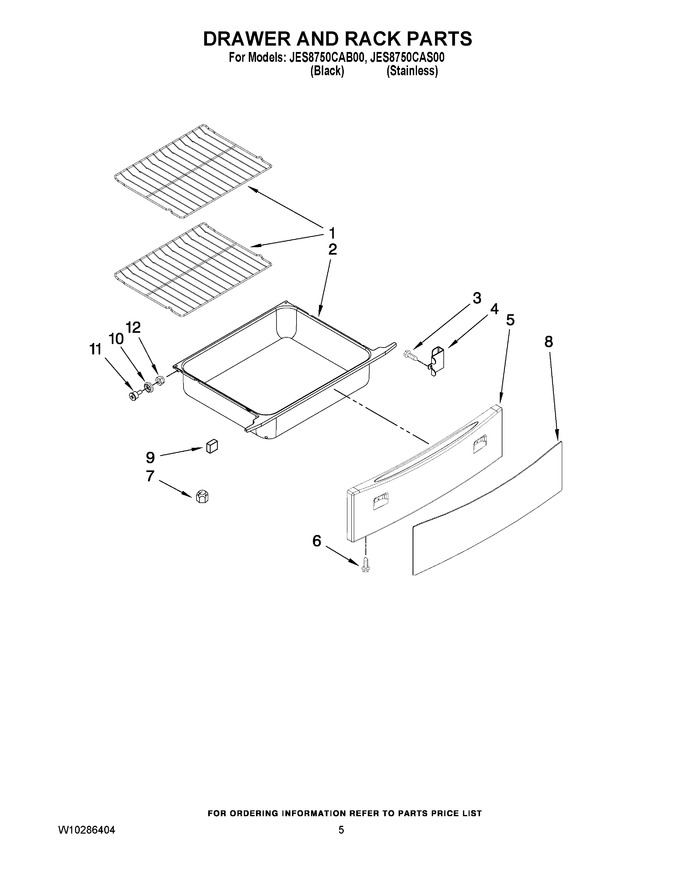

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7801P173-60 | Rack, Oven |
|
$ 55.72 | |||||
| 2 | WP3405F037-80 | Drawer, Storage (Replaces: 3405F033-80) |
|
$ 304.98 | |||||
| 3 | WP7101P072-60 | Screw (10-24) (Replaces: 7101P072-60) |
|
$ 6.77 | |||||
| 4 | 3801F887-51 | Bracket, Drawer |
|
$ 8.32 | |||||
| 5 | WP2416F086-70 | Panel, Drawer (black) (Replaces: 2416F086-70) |
|
$ 205.28 | |||||
| 6 | W11347848 | Screw, Panel (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 7 | WPW10131078 | Nut, Lock (10-24) (Replaces: 7103P139-60) |
|
$ 4.00 | |||||
| 8 | 7922P057-60 | Glass, Drawer (black) |
|
- | |||||
| 9 | 8010P152-60 | Spacer, Rubber |
|
- | |||||
| 10 | WP74004078 | Roller, Drawer (Replaces: 8014P022-60) |
|
Immediately | $ 10.70 | ||||
| 11 | 7118P032-60 | Shaft, Roller |
|
- | |||||
| 12 | WP488130 | Nut, Lock (8-32) (Replaces: 7103P082-60) |
|
$ 6.27 |
