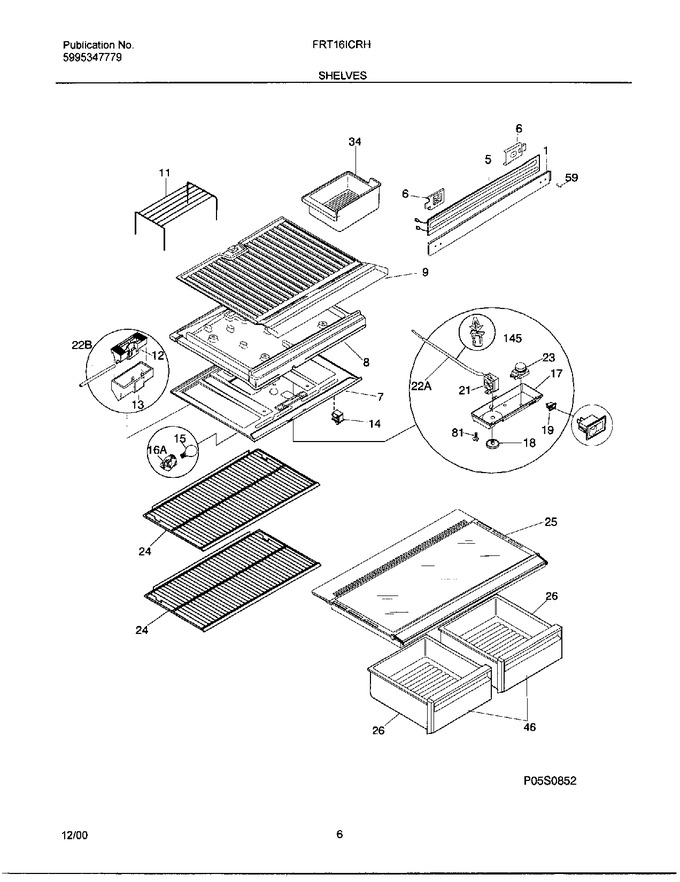

06 - Shelves
08 - System
10 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218651801 | Mullion, Almond |
|
- | |||||
| 1 | 218651800 | Mullion, White |
|
- | |||||
| 6 | 218845602 | Tapping Plate,mullion Mtg |
|
$ 14.86 | |||||
| 7 | 218865802 | Panel-top,refr Cavity |
|
- | |||||
| 8 | 218909705 | Divider,styrofoam ,w/foil Tape |
|
$ 88.57 | |||||
| 9 | 218865600 | Panel-bottom,frzr Cavity |
|
- | |||||
| 11 | 5303282284 | Shelf-freezer, ``table Type`` (Replaces: 5303283280) |
|
Immediately | $ 88.05 | ||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5304414816 | Control Box |
|
- | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 24 | 218272502 | Shelf, Sliding, Wire |
|
$ 621.92 | |||||
| 25 | 218314101 | Cover-crisper Pan, W/support Beam |
|
$ 219.45 | |||||
| 26 | 3206180 | Pan - Crisper |
|
$ 155.70 | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 46 | 5303303588 | Front, Crisper Pan |
|
$ 42.44 | |||||
| 59 | 240442708 | Screw,pan Hd,10-32 X 0.625,hinge/mull,thrd Form (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 (Replaces: 218362500) |
|
$ 12.05 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 22B | 218731104 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
$ 35.64 | |||||
| F14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| F19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| F21 | 5304404821 | Control-temperature (Replaces: 5303321453) |
|
Immediately | $ 164.57 | ||||
| F23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min (Replaces: 215846605) |
|
Immediately | $ 28.20 | ||||
| F5 | 218781004 | Heater-mullion |
|
- | |||||
| NI | 5303001260 | Screw |
|
$ 6.73 | |||||
| NI | 5308016567 | Nut-anchor |
|
- | |||||
| NI | 5303001449 | Seal-air Deflector,foam Plastic ,(2) |
|
$ 2.12 | |||||
| NI | 218878500 | Wiring Harness,control/divider |
|
$ 105.99 | |||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
