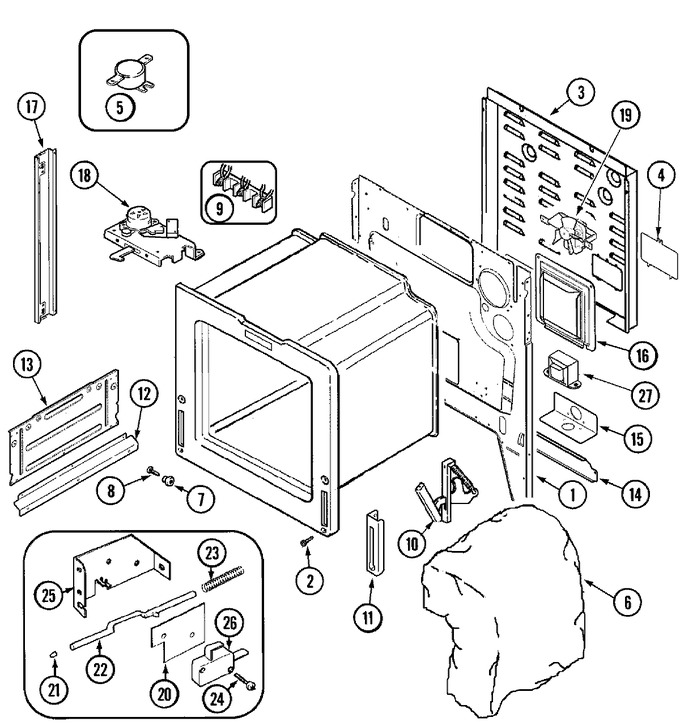

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005721		Back, Main	10	Appelez-nous	-
2	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
3	74005265		Cover, Wire (rear)	10	Appelez-nous	-
4	74005264		Cover, Terminal Block	10	Appelez-nous	-
5	WP71001844		Thermostat, Hi-limit   (Replaces: 71001844)	10			$ 195.41
6	74003382		Insulation, Back/bottom	10	Appelez-nous	-
6	74005771		Insulation, Oven Wrap	10	Appelez-nous	-
6	74003503		Insulation, Oven	10	Appelez-nous	-
7	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
8	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
9	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
9	74002303		Block, Disconnect	10	Appelez-nous	-
9	74002306		Block, Disconnect	10	Appelez-nous	-
9	74002301		Block, Disconnect	10	Appelez-nous	-
9	74002230		Block, Disconnect (male)	10	Appelez-nous	-
9	74002305		Block, Disconnect	10	Appelez-nous	-
10	74011142		Hinge, Door   (Replaces: 74005725)	10		Immediately	$ 108.22
11	74004173		Plate, Hinge	10	Appelez-nous	-
12	74005728		Extension, Heat Shield	10	Appelez-nous	-
12	74004176		Extension, Heat Shield	10	Appelez-nous	-
13	74004177		Shield, Heat	10	Appelez-nous	-
14	74005722		Extension, Main Back	10	Appelez-nous	-
15	W10190166		Bracket, Power Supply   (Replaces: 74004180)	10			$ 8.32
16	74004348		Retainer, Insulation	10	Appelez-nous	-
17	74004216		Trim, Side (blk)	10	Appelez-nous	-
18	74004327		Assembly, Door Latch	10			$ 151.17
18	74005675		Assembly, Door Latch	12			$ 154.57
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	74003975		Screw (8abx3/8-blk)	10			$ 12.02
19	74004947		Fan Motor Asy.	10			$ 214.77
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	74001872		Insulator, Switch	10	Appelez-nous	-
21	74001631		Bumper, Rod	10			$ 5.22
22	74003562		Rod, Door Light Switch	10	Appelez-nous	-
23	74001629		Spring, Door Switch	10			$ 15.03
24	7101P330-60		Screw, Switch	10	Appelez-nous	-
25	74001632		Bracket, Switch Actuator	10	Appelez-nous	-
26	74001802		Switch	10	Appelez-nous	-
27	74005416		Transformer (stepdown)	10			$ 44.05
