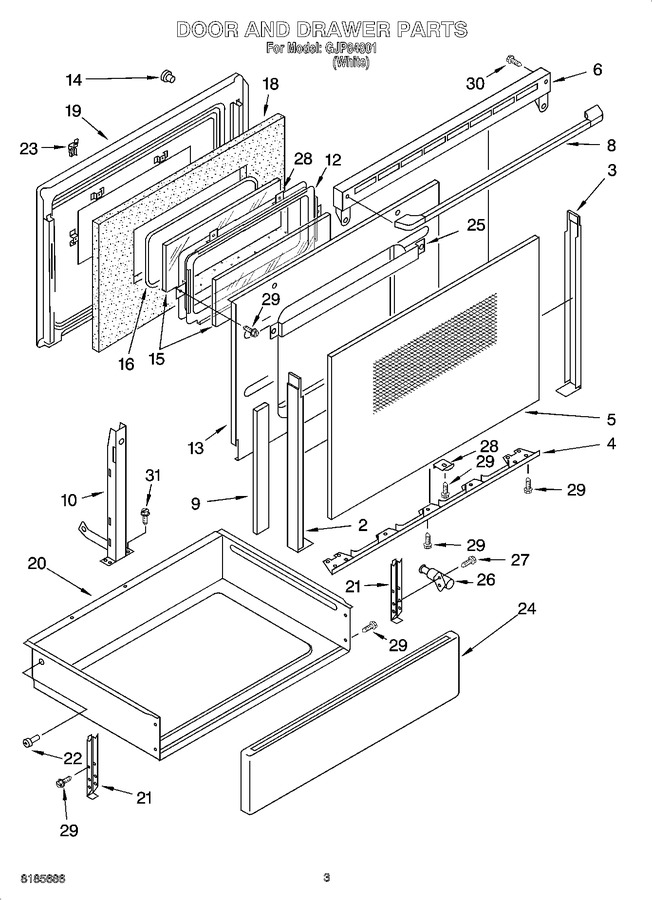

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PW		Trim, Door-left		Appelez-nous	-
3	9782004PW		Trim, Door-right		Appelez-nous	-
4	9781209PW		Trim, Door Bottom		Appelez-nous	-
5	9781635PW		Glass, Door Front				$ 113.98
6	9753498GW		Vent, Door		Appelez-nous	-
6	9781659		Gasket, Door Vent		Appelez-nous	-
8	9751136PW		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9782033)			Immediately	$ 208.67
12	9781602		Frame, Glass		Appelez-nous	-
13	9781586		Shield, Door		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
15	WP9781593		Glass, Pyro (2)   (Replaces: 9781593)				$ 116.35
16	9755177		Seal, Window				$ 76.91
18	9754006		Insulation, Door		Appelez-nous	-
19	9781600GM		Liner, Door				$ 140.49
20	9750257		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	814229		Roller, Drawer   (Replaces: 422604)			Immediately	$ 51.23
23	9750676		Retainer, Door		Appelez-nous	-
24	9782108PW		Front, Drawer		Appelez-nous	-
25	9750693		Heat Channel		Appelez-nous	-
26	9751248		Latch, Drawer		Appelez-nous	-
27	WP90296		Clip   (Replaces: 90296)				$ 7.07
27	9780806		Screw, 4ab X 3/8		Appelez-nous	-
28	9781502		Spacer, Door (8)		Appelez-nous	-
29	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
30	WPW10001180		Screw, 10-24 X 3/8   (Replaces: 9781072)				$ 7.23
31	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
