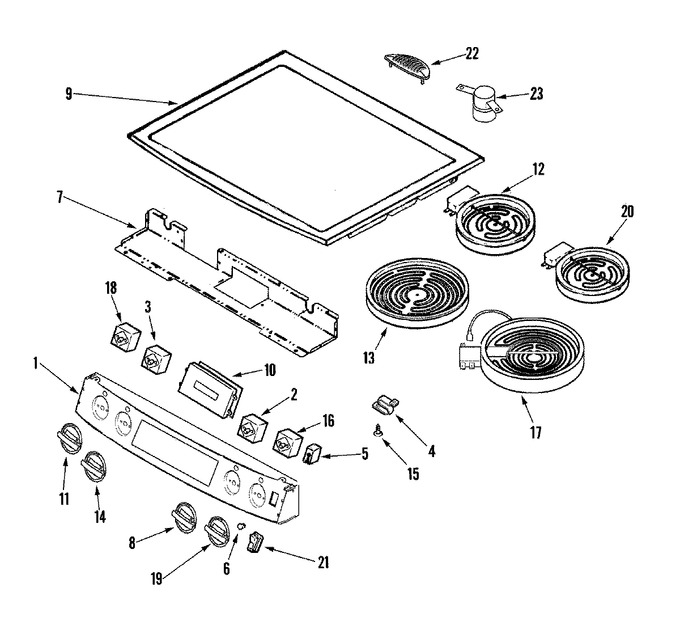

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011621		Control Panel/switch Asy (blk)	10	Appelez-nous	-
2	WP74008940		Switch, Infinite (flex)   (Replaces: 74008940)	10		Immediately	$ 125.54
3	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
4	74007845		Support, Element	10	Appelez-nous	-
5	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
6	WP22001948		Lens, Indicator Light   (Replaces: 22001948)	10			$ 11.42
7	74011761		Support, Control Panel	10	Appelez-nous	-
8	WP74011580		Knob (flex)   (Replaces: 74011580)	10		Immediately	$ 29.14
9	74011635		Glass Top Asy (blk)	10	Appelez-nous	-
10	WP8507P226-60		Control   (Replaces: 74011719)	10		Immediately	$ 368.47
10	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
11	WP74011579		Knob (custom Control)   (Replaces: 74011579)	10		Immediately	$ 32.06
12	W10823711		Element (1200w)   (Replaces: 74008573)	10		Immediately	$ 183.95
13	W10823722		Element, Dual (3000)   (Replaces: 74011575)	10		Immediately	$ 386.92
13	W10823724		Element- D   (Replaces: 74011986)	14		Immediately	$ 333.25
14	WP74011493		Knob   (Replaces: 74011493)	10		Immediately	$ 39.64
15	WP7101P498-60		Screw (6abx.25-zn)   (Replaces: 74003357)	10			$ 6.74
16	WP74010824		Switch, Element (lrg)   (Replaces: 74010824)	10		Immediately	$ 100.92
17	W10823718		Element, Triple   (Replaces: 74010158)	10		Immediately	$ 364.59
18	WPW10185286		Control, Burner (custom)   (Replaces: W10185286)	18		Immediately	$ 192.92
18	WPW10185286		Control, Burner (custom)   (Replaces: 74011596)	10		Immediately	$ 192.92
19	WP74011631		Knob   (Replaces: 74011631)	10		Immediately	$ 58.33
20	74011620		Element (warming Zone)	10			$ 149.48
21	74008718		Switch, Rocker (blk)	10			$ 50.46
22	74011632		Trim, Vent (blk)	10	Appelez-nous	-
23	74005759		Tube, Vent (upr)	10	Appelez-nous	-
