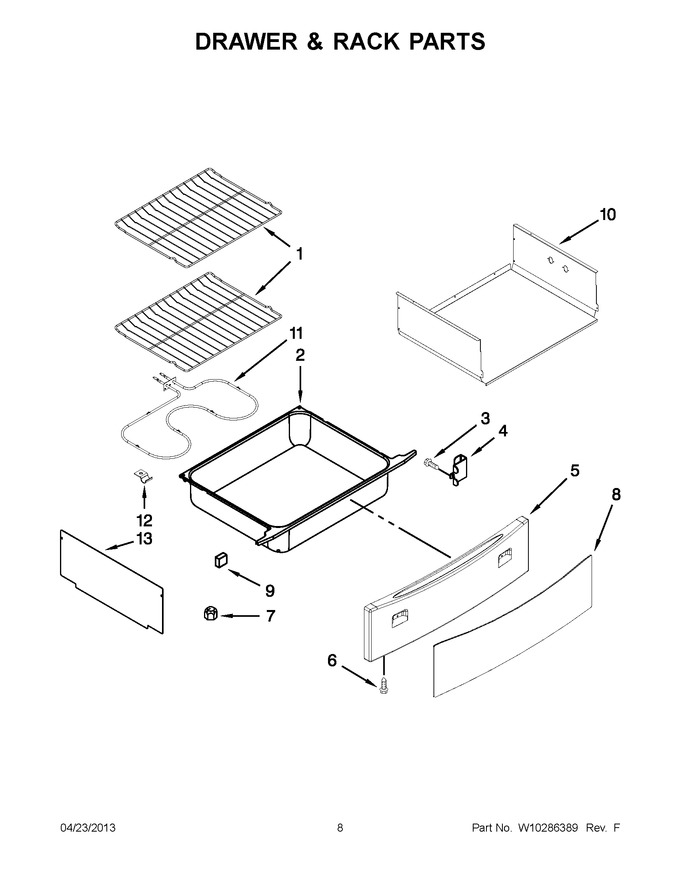

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7801P173-60		Rack, Oven				$ 55.72
2	3405W043-19		Drawer, Warming				$ 177.18
3	WP7101P072-60		Screw   (Replaces: 7101P072-60)				$ 6.77
4	3801F887-51		Bracket, Drawer				$ 8.32
5	2416F086-71		Panel, Drawer (white)				$ 126.90
5	WP2416F086-70		Panel, Drawer (black)   (Replaces: 2416F086-70)				$ 205.28
6	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
7	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)				$ 4.00
8	WPW10297248		Glass, Drawer (stainless)   (Replaces: W10184467)				$ 230.90
8	7922P057-60		Glass, Drawer (black)		Appelez-nous	-
8	7922P058-60		Glass, Drawer (white)				$ 86.39
9	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
10	2206F087-45		Body Warming Drawer				$ 78.16
11	W10310262		Element, Warming		Appelez-nous	-
12	3807F633-45		Clip, Warming Element		Appelez-nous	-
13	3604F414-51		Shield, Warming Element				$ 32.80
