SELECT A DIAGRAM

01 - Blower Assembly (plenum)


02 - Body


03 - Control Panel/top Assy


04 - Door/access Panel (stl)


05 - Oven/base


06 - Wiring Information

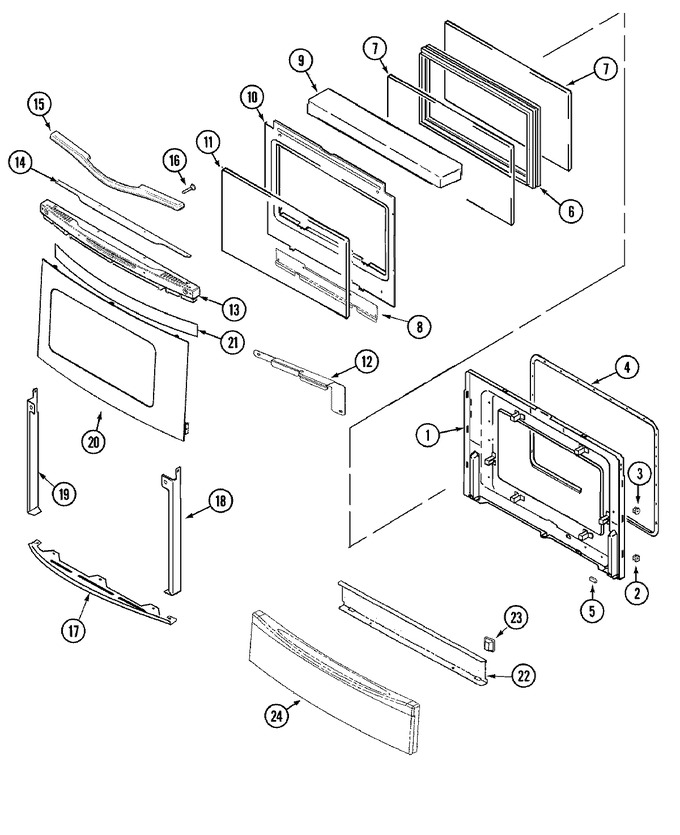

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003642		Lining, Door	10	Appelez-nous	-
2	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
3	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
5	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
6	74003644		Frame, Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	74007215		Retainer, Door Glass	10	Appelez-nous	-
9	74003647		Insulation, Oven Door	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74003648		Baffle, Door	10	Appelez-nous	-
11	74007214		Glass, Door (inr)	10			$ 39.47
12	74007205		Retainer, Door Glass (rt)	10	Appelez-nous	-
12	W11233072		Screw   (Replaces: 74001280)	10		Immediately	$ 12.62
12	74007206		Retainer, Door Glass (lt)	10	Appelez-nous	-
13	74005700		Trim, Door (top-blk)	10	Appelez-nous	-
14	74005704		Insert, Door Trim (blk)	10	Appelez-nous	-
14	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
15	74005698		Handle, Door (blk)	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	71003275		Screw (no.10-32 X .625``)	10			$ 5.27
17	74007207		Insulation, Door Glass	10	Appelez-nous	-
17	74005763		Support, Glass	10	Appelez-nous	-
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	74005693		Trim, Door (rt-blk)	10	Appelez-nous	-
19	74005695		Trim, Door (lt-blk)	10	Appelez-nous	-
19	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
20	74007211		Glass, Door Assy. (stl)	10	Appelez-nous	-
21	74003664		Tape, Foil 29`` X 2``	10	Appelez-nous	-
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	74005807		Bracket, Access Panel	10	Appelez-nous	-
23	71002106		Latch, Base Door	10			$ 9.11
24	74007210		Panel, Drawer Accent (stl)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
