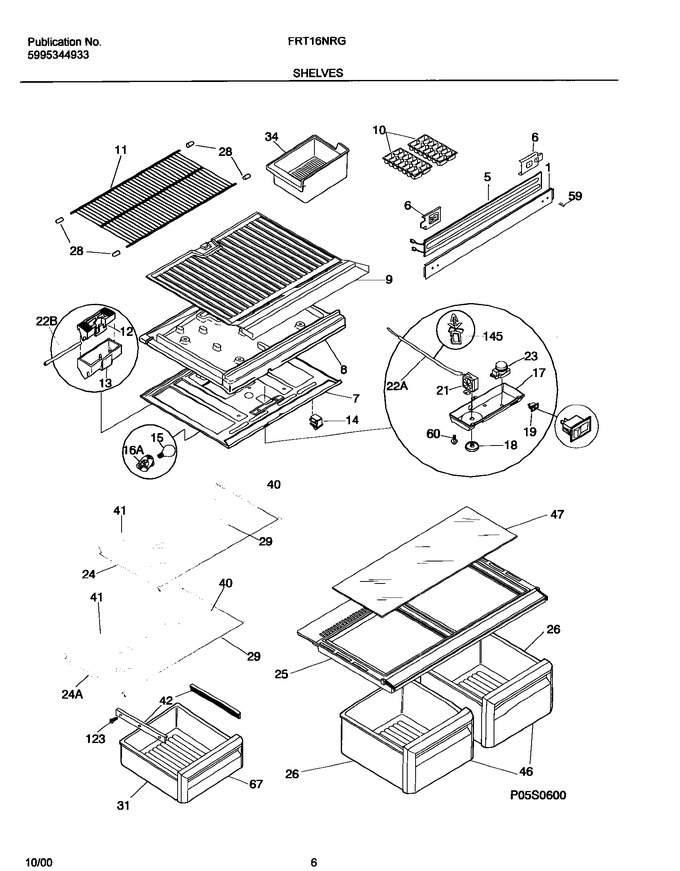

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651800		Mullion, White		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218865802		Panel-top,refr Cavity		Appelez-nous	-
8	218909705		Divider,styrofoam ,w/foil Tape				$ 88.57
8	218878500		Wiring Harness,control/divider				$ 105.99
9	218865600		Panel-bottom,frzr Cavity		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303299664		Spacer-shelf				$ 24.10
11	5303283107		Shelf-freezer, Fixed/flat Width, Wire				$ 155.82
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5304414816		Control Box		Appelez-nous	-
17	5308016567		Nut-anchor		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
21	5303001260		Screw				$ 6.73
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	218276001		Frame-shelf, Sliding, Full Width				$ 72.01
25	218314102		Cover-crisper Pan, With Beam				$ 221.99
26	3206180		Pan - Crisper				$ 155.70
28	3201150		End Cap-shelf,protector				$ 4.57
29	215919442		Trim-glass Shelf,22.00`` ,front		Appelez-nous	-
31	3206209		Pan-meat				$ 183.70
34	5303212918		Container-ice				$ 104.66
40	218390578		Glass-shelf,22.00`` X 13.94``		Appelez-nous	-
41	215919839		Trim-glass Shelf, 21.88`` Rear				$ 59.38
42	5303305310		Hanger-meat Pan, Rh		Appelez-nous	-
42	5303305309		Hanger-meat Pan, Lh		Appelez-nous	-
46	215357408		Front-crisper Pan		Appelez-nous	-
47	218390576		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo   (Replaces: 218188000)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
67	215359805		Front-meat Pan		Appelez-nous	-
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22B	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
24A	218276002		Frame-shelf, Sliding, Full Width, W/hanger Tabs				$ 107.83
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
F21	5304404821		Control-temperature   (Replaces: 5303321453)			Immediately	$ 164.57
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/21 Min   (Replaces: 215846605)			Immediately	$ 28.20
F5	218781004		Heater-mullion		Appelez-nous	-
