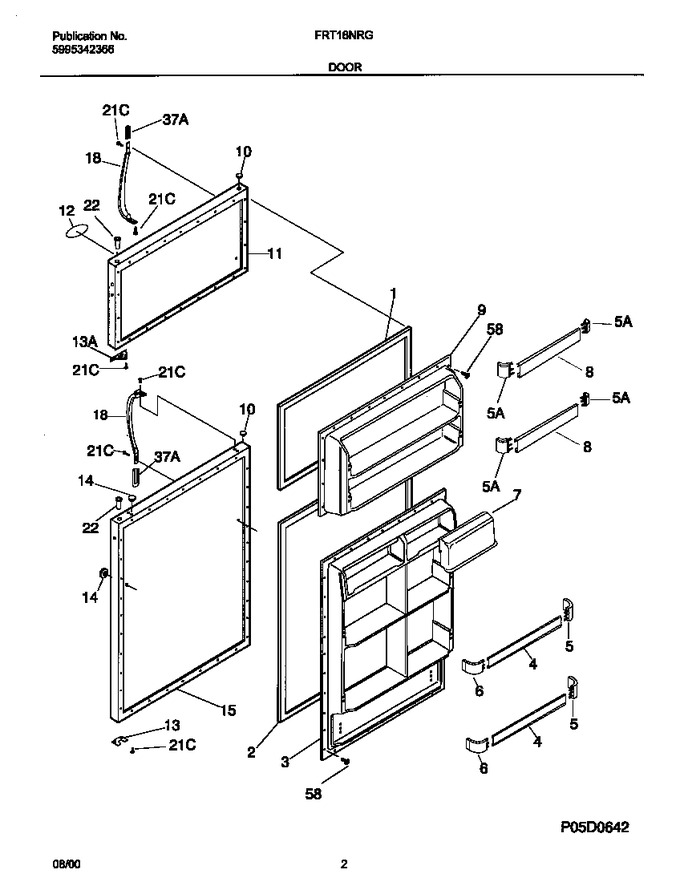

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic				$ 62.07
3	218460801		Panel-inner Door, Refr				$ 269.28
4	215516220		Rack-door,19.20`` X 2.04``   (Replaces: 218763611)				$ 54.58
5	218758602		Support-door Rack,rh/lh			Immediately	$ 23.39
5	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	218287906		Door-dairy,10.71`` Wide ,clear		Appelez-nous	-
8	215516220		Rack-door,20.66`` X 2.04``   (Replaces: 218763612)				$ 54.58
9	218460701		Panel-inner Door, Frzr				$ 292.02
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917814		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	218425004		Nameplate Assy, White		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303917838		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*80081	215008607		Label-nameplate,white		Appelez-nous	-
*80082	215518000		Magnet-nameplate		Appelez-nous	-
*80084	218364001		Frame-nameplate, White		Appelez-nous	-
*80085	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
