SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System

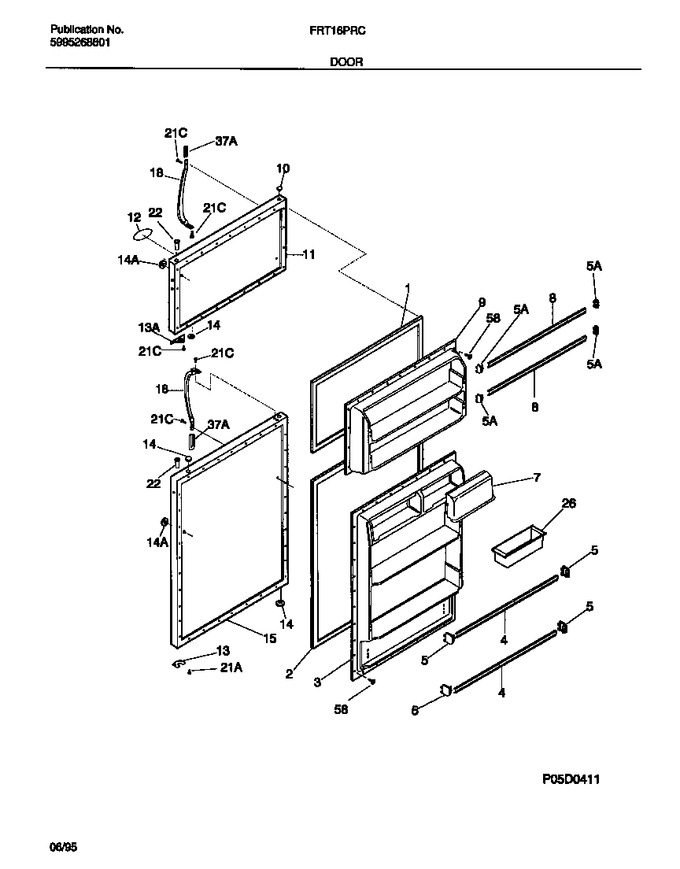

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, 19.20`` X 2.04``   (Replaces: 215516238)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	218287904		Door-dairy, 10.71`` Wide				$ 91.96
8	215516239		Rack-door, 20.66`` X 2.04``		Appelez-nous	-
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917598		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008607		Label-nameplate, White, Frigidaire (not Illustrated)		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	218364001		Frame-nameplate, White		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
13	218249001		Door Stop, White, Frzr				$ 82.06
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
14	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
15	5303917596		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218363401		Handle-door, White, Hard-grip				$ 85.29
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
37	215870607		Trim-handle, 2.47``, White, W/chrome Band		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*41440	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
