SELECT A DIAGRAM

01 - Cover

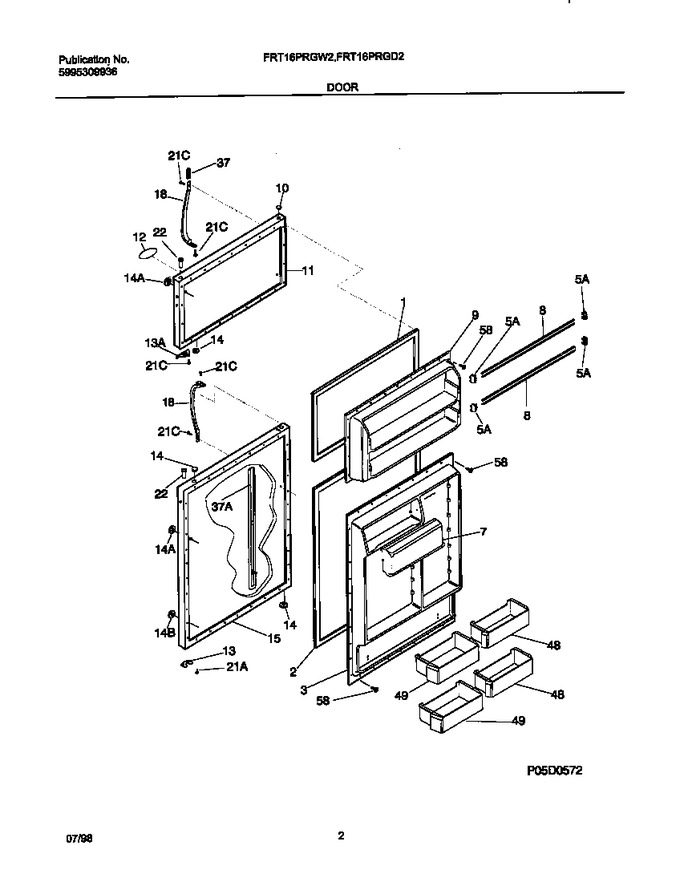

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	218359301		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	218287906		Door-dairy, 10.71`` Wide		Appelez-nous	-
8	215516220		Rack-door, (2)   (Replaces: 218763612)				$ 54.58
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917781		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	218800300		Door Stop,plated		Appelez-nous	-
14	5308000181		Plug-button, Almond		Appelez-nous	-
14	215352211		Plug-button, Almond, Handle Mtg, Refr Door Front		Appelez-nous	-
15	5303917779		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215870620		Trim-handle, 2.47``, Almond, W/chrome Band		Appelez-nous	-
37	215867071		Trim-handle, 29.84``, Almond, W/band & Locks		Appelez-nous	-
48	215441811		Bin-door		Appelez-nous	-
49	215441502		Bin-door,gallon   (Replaces: 215441513)				$ 176.87
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*29240	215008608		Label-nameplate,almond		Appelez-nous	-
*29242	215518000		Magnet-nameplate		Appelez-nous	-
*29243	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
14A	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676001		Band-decorative,chrome				$ 36.17
37C	218807701		Lock-handle Trim,stick-on		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
