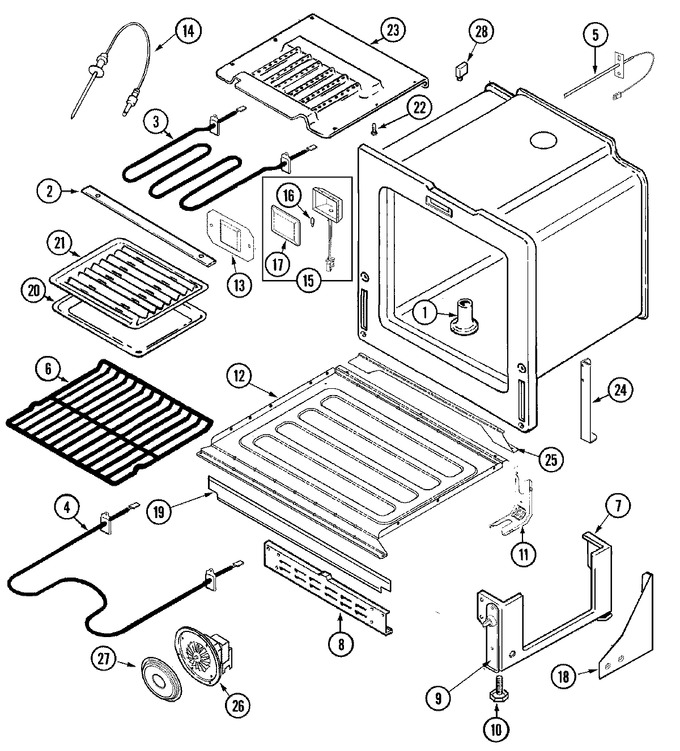

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005720		Tube, Vent (lwr)	10	Appelez-nous	-
2	74003563		Support, Broil Element	10	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
3	W11676350		Element, Broil (8 Pass)   (Replaces: 74003042)	10			$ 164.05
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74010750		Element, Bake   (Replaces: 74003039)	10		Immediately	$ 47.69
5	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 39.55
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	74005772		Pedestal, Side	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	74005828		Strike, Access Panel	10	Appelez-nous	-
10	W11665456		Leg, Leveling   (Replaces: 74002557)	10		Immediately	$ 25.30
11	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
12	74005824		Retainer, Insulation	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74005777		Cover, Light	10	Appelez-nous	-
14	WP71001870		Probe, Temp   (Replaces: 71001870)	10			$ 201.71
15	74005773		Halogen Lamp Assy	10	Appelez-nous	-
16	WP74009925		Bulb, Halogen   (Replaces: 74004458)	10		Immediately	$ 20.37
17	WP74004607		Lens, Cover   (Replaces: 74004607)	10			$ 20.09
18	74006082		Brace, Pedestal (lt)	10	Appelez-nous	-
18	74006083		Brace, Pedestal (rt)	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
19	74005724		Shield, Front Frame (wht)	10	Appelez-nous	-
20	Y3401F02019		Pan, Broil	10	Appelez-nous	-
21	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
23	74003564		Baffle, Broil	10	Appelez-nous	-
24	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
24	74004780		Support, Oven	10	Appelez-nous	-
25	74005825		Support, Retainer	10	Appelez-nous	-
26	74005401		Screw	10			$ 5.33
26	74006807		Fan Assy., Dual Convect	10	Appelez-nous	-
27	74005783		Cover, Convect	10	Appelez-nous	-
27	74005401		Screw	10			$ 5.33
28	74009649		Receptacle, Probe	15	Appelez-nous	-
28	71001863		Receptacle, Probe	10	Appelez-nous	-
28	Y703356		Nut, Hex 3/8``	10	Appelez-nous	-
