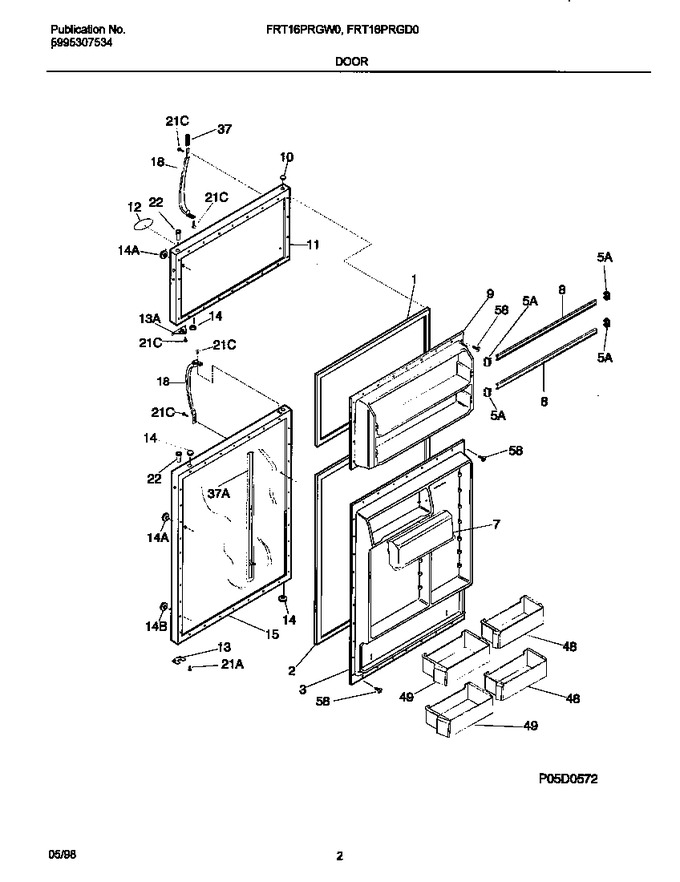

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007123 | Gasket-frzr Door, White, Magnetic |
|
$ 188.54 | |||||
| 2 | 218730603 | Gasket-refr Door, White, Magnetic (Replaces: 5318680311) |
|
$ 62.07 | |||||
| 3 | 218359301 | Panel-inner Door, Refr |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 218758601) |
|
Immediately | $ 23.39 | ||||
| 7 | 218287906 | Door-dairy, 10.71`` Wide |
|
- | |||||
| 8 | 215516220 | Rack-door, (2) (Replaces: 218763612) |
|
$ 54.58 | |||||
| 9 | 218358801 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917780 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 218364001 | Frame-nameplate, White |
|
- | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle Mtg, Refr Door Front (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 14 | 240494001 | Plug-button, White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917778 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 218668001 | Handle-door, White |
|
Immediately | $ 66.16 | ||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X .5 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218251900 | Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed |
|
$ 10.55 | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 37 | 215870619 | Trim-handle, 2.47``, White, W/chrome Band |
|
$ 72.72 | |||||
| 37 | 215867070 | Trim-handle, 29.84``, White, W/band & Locks |
|
- | |||||
| 48 | 215441811 | Bin-door |
|
- | |||||
| 49 | 215441502 | Bin-door,gallon (Replaces: 215441513) |
|
$ 176.87 | |||||
| 58 | 218749600 | Screw,10 Pan Hd ,8-18 X .5 |
|
$ 5.15 | |||||
| *30641 | 215008607 | Label-nameplate,white |
|
- | |||||
| *30642 | 215518000 | Magnet-nameplate |
|
- | |||||
| *30643 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 14A | 218074001 | Plug-button, White, Refr Door Front, Lower |
|
$ 13.76 | |||||
| 14B | 218074002 | Plug-button, Almond, Refr Door Front, Lower |
|
- | |||||
| 37A | 215782300 | Lock-handle Trim,snap-in |
|
$ 34.49 | |||||
| 37B | 218676001 | Band-decorative,chrome |
|
$ 36.17 | |||||
| 37C | 218807701 | Lock-handle Trim,stick-on |
|
- |
