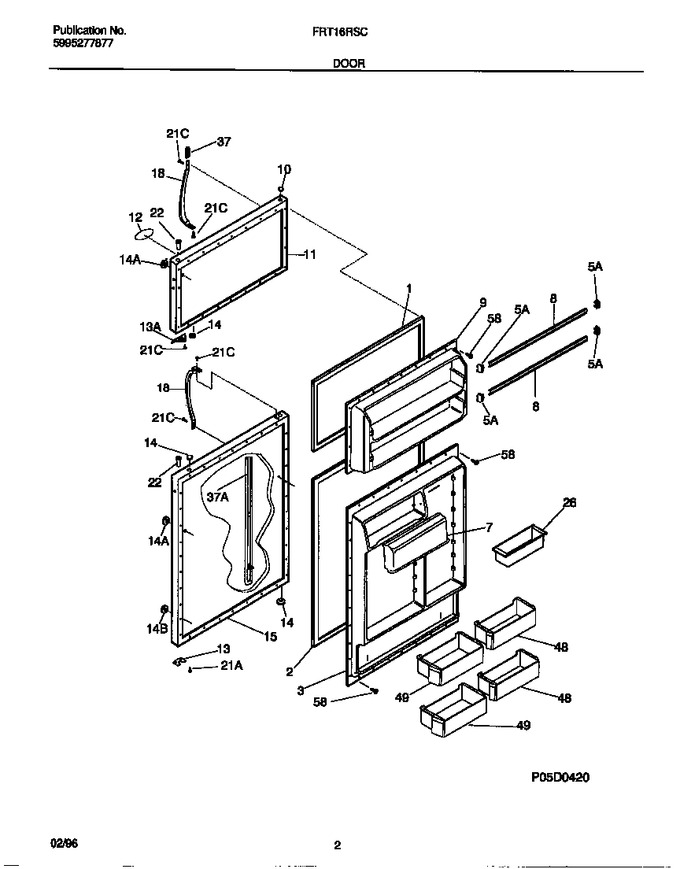

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	218359301		Panel-inner Door, Refr		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	218287906		Door-dairy, 10.71`` Wide		Appelez-nous	-
8	215516239		Rack-door, 20.66`` X 2.04``		Appelez-nous	-
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917603		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	215008608		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917601		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218363403		Handle-door, Black (optional Accessory)		Appelez-nous	-
18	218363402		Handle-door, Almond		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
37	215870609		Trim-handle, 2.47``, Black, W/chrome Band		Appelez-nous	-
37	215867038		Trim-handle, 29.84``, Almond, W/band & Locks		Appelez-nous	-
37	215870608		Trim-handle, 2.47``, Almond, W/chrome Band		Appelez-nous	-
48	218592310		Bin-door, With Trim				$ 127.30
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592306)				$ 176.87
58	5303314236		Screw, Truss/ph Head, 8-18ab X .500		Appelez-nous	-
*74640	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215867039		Trim-handle, 29.84``, Black, W/band & Locks		Appelez-nous	-
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
37C	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
