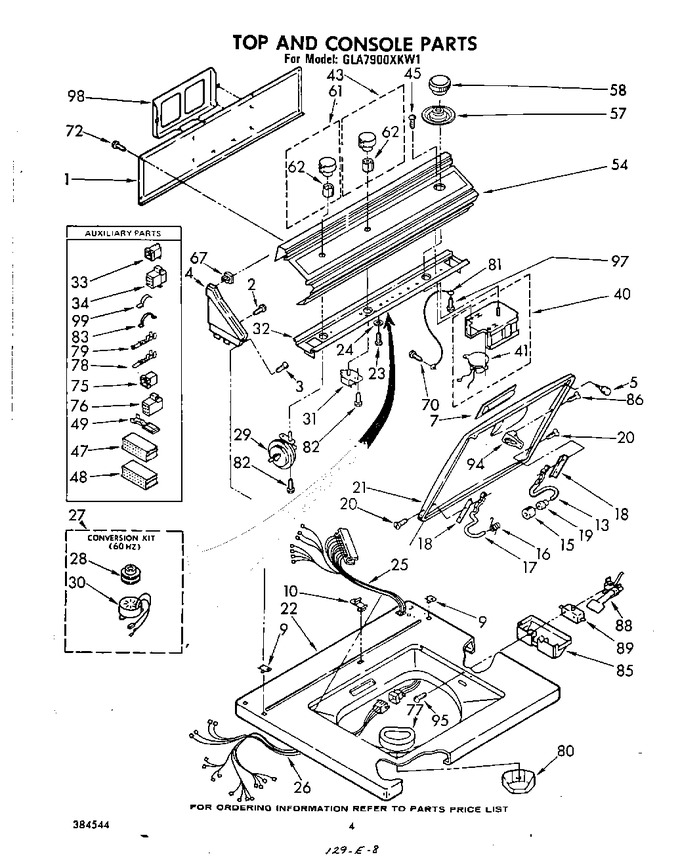

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359372		Panel, Rear Console		Appelez-nous	-
2	355326		Screw, 13-16 X 5/8		Appelez-nous	-
3	358225		Screw		Appelez-nous	-
4	375309		White		Appelez-nous	-
4	375305		White		Appelez-nous	-
4	375313		Almond		Appelez-nous	-
4	375318		Golden Harvest Cap, End (r.h.)		Appelez-nous	-
4	375315		Almond		Appelez-nous	-
4	377283		Golden Harvest		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
7	379884		Handle, Lid (white)		Appelez-nous	-
7	379885		Handle, Lid (almond)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
10	358472		Stop, Push-in Top (1)		Appelez-nous	-
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
15	91605		Bumper (2)		Appelez-nous	-
16	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw   (Replaces: 18724)			Immediately	$ 6.47
21	379984		Lid (white)		Appelez-nous	-
21	379985		Lid (almond)		Appelez-nous	-
21	379988		Lid (golden Harvest)		Appelez-nous	-
22	380287		Top (golden Harvest)		Appelez-nous	-
22	380283		Top (white)		Appelez-nous	-
22	380284		Top (almond)		Appelez-nous	-
23	WP3351614		Screw, 10 X 3/8 (2) (used To Mount Conversion Kit)   (Replaces: 90864)			Immediately	$ 6.26
24	DE81-07434A		Washer (2) (used To Mount Conversion Kit)   (Replaces: 92217)				$ 136.39
25	359370		Harness, Console		Appelez-nous	-
26	359793		Harness, Cabinet		Appelez-nous	-
27	357918		Conversion Kit, 60 Hz. (this Kit Is Installed Into Machine. Contact Your Authorized Tech Care Agent		Appelez-nous	-
28	357514		Pulley, Motor (60 Hz.)		Appelez-nous	-
29	364907		Switch, Water Level		Appelez-nous	-
30	362681		Motor, Timer (60 Hz.)		Appelez-nous	-
31	358935		Switch, Water Temperature (alternate)		Appelez-nous	-
31	358934		Switch, Water Temperature (alternate)		Appelez-nous	-
32	359708		Bracket, Control		Appelez-nous	-
33	96895		Cap, Terminal		Appelez-nous	-
34	96894		Plug, Terminal		Appelez-nous	-
40	380278		Timer Assembly, 50 Hz.		Appelez-nous	-
41	362682		Motor Timer (50 Hz.)		Appelez-nous	-
43	690307		Knob Assembly, Water Temperature		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
48	352090		Block, Disconnect		Appelez-nous	-
49	352088		Terminal, Female				$ 5.83
54	382422		Panel, Control		Appelez-nous	-
57	359254		Dial, Timer		Appelez-nous	-
58	359773		Knob, Timer		Appelez-nous	-
61	690306		Knob Assembly, Water Level		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Clip, ``u``		Appelez-nous	-
70	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
72	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
77	352821		Bezel, Dispenser		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
80	352827		Tray, Dispenser		Appelez-nous	-
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
82	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
83	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	00-6163		Switch, Lid (alternate)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alternate)   (Replaces: 367034)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alternate)   (Replaces: 364091)			Immediately	$ 27.45
94	357633		Strike, Lid Switch		Appelez-nous	-
95	354764		Screw & Washer		Appelez-nous	-
97	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
98	357645		Rack, Literature		Appelez-nous	-
99	WP90016		Clip   (Replaces: 90016)				$ 10.19
