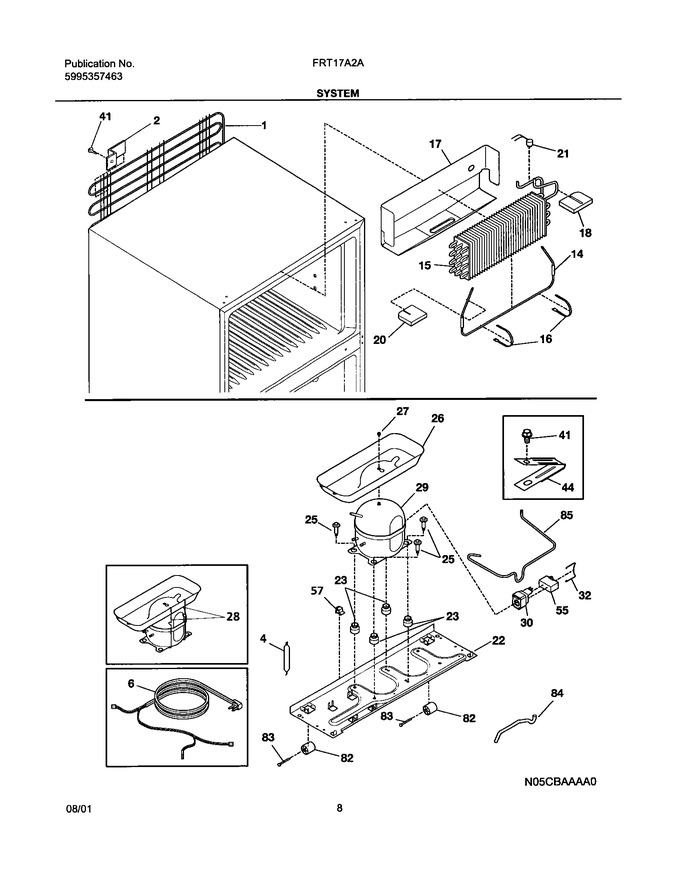

09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000296		Bracket,condenser Mtg ,(4)				$ 30.20
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	240434001		Trough-drain		Appelez-nous	-
18	240362301		Insulation Block,rh		Appelez-nous	-
20	240362401		Insulation Block,lh		Appelez-nous	-
22	240330005		Base-compressor		Appelez-nous	-
23	216498900		Grommet,compressor				$ 13.01
25	240420301		Screw,shoulder Typ Cf ,1/4-28 X 0.965 ,hex Washer Head		Appelez-nous	-
26	240346901		Pan-defrost Drain				$ 335.78
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 65.21
41	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
44	5303001199		Clamp				$ 65.92
57	240403601		Clip-wiring Harness		Appelez-nous	-
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	240367101		Tube-drain,lower				$ 123.22
85	240346202		Tube-connector,suction		Appelez-nous	-
F1	240397901		Condenser,static		Appelez-nous	-
F14	5303918203		Defrost Heater Kit				$ 156.64
F15	5303918275		Evaporator Kit   (Replaces: 5303918257)				$ 343.46
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	5304511983		Compressor,r134a ,w/ Electricals   (Replaces: 5303918233)				$ 671.86
F30	218721113		Starter-ptc		Appelez-nous	-
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
F6	240375401		Wiring Harness,machine Compt ,w/ Service Cord				$ 143.79
NI	5308009617		Washer,ext Tooth Lock ,no.10 ,grounding		Appelez-nous	-
NI	240385401		Wiring Harness,freezer Section				$ 73.97
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	218843800		Screw,hex Wshr Hd ,8-15a X 0.500		Appelez-nous	-
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	5303918263		Heat Exchanger Kit,suction Line				$ 461.16
NI	5303208866		Spacer-cond Tube,black				$ 1.94
NI	5303918234		Hot Tube Repair Kit,service				$ 585.53
NI	240405201		Grommet,mounting ,rubber ,black ,holds Tube/wire,holds Tube/wire				$ 19.85
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
