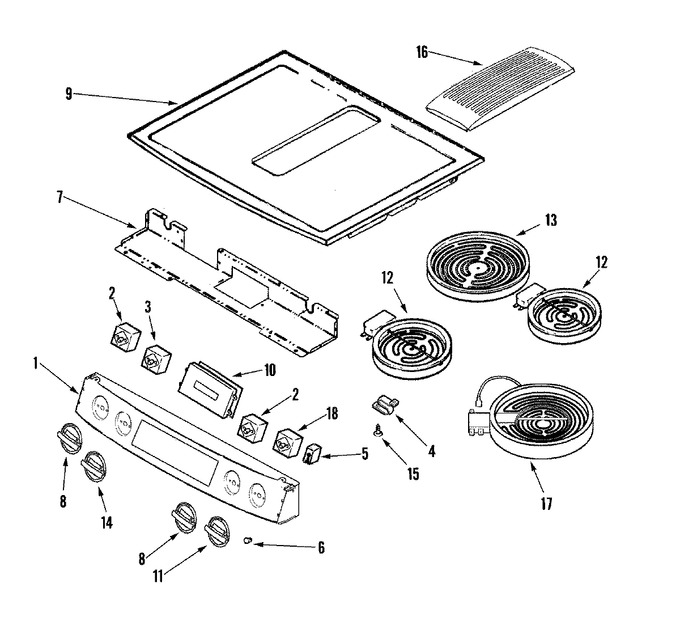

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011577 | Control Panel/switch Asy (wht) | 10 |
|
- | ||||
| 2 | WP74008940 | Switch, Infinite (flex) (Replaces: 74008940) | 10 |
|
Immediately | $ 125.54 | |||
| 3 | WP74010824 | Switch, Element (lrg) (Replaces: 74010824) | 10 |
|
Immediately | $ 100.92 | |||
| 4 | 74007845 | Support, Element | 10 |
|
- | ||||
| 5 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 6 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 7 | 74011761 | Support, Control Panel | 10 |
|
- | ||||
| 8 | WP74011580 | Knob (flex) (Replaces: 74011580) | 10 |
|
Immediately | $ 29.14 | |||
| 9 | 74011794 | Glass Top Asy (wht) | 10 |
|
- | ||||
| 10 | WP8507P234-60 | Control (Replaces: 74011546) | 10 |
|
Immediately | $ 385.17 | |||
| 10 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 11 | WP74011579 | Knob (custom Control) (Replaces: 74011579) | 10 |
|
Immediately | $ 32.06 | |||
| 12 | W10823711 | Element (1200w) (Replaces: 74008573) | 10 |
|
Immediately | $ 183.95 | |||
| 13 | W10823692 | Element, Dual (Replaces: 74011551) | 10 |
|
Immediately | $ 204.83 | |||
| 14 | WP74011550 | Knob (Replaces: 74011550) | 10 |
|
Immediately | $ 39.13 | |||
| 15 | WP7101P498-60 | Screw (6abx.25-zn) (Replaces: 74003357) | 10 |
|
$ 6.74 | ||||
| 16 | 7772P040-60 | Grill, Air (wht) (Replaces: 74005809) | 10 |
|
$ 221.36 | ||||
| 17 | W10823722 | Element, Dual (3000) (Replaces: 74011575) | 10 |
|
Immediately | $ 386.92 | |||
| 17 | W10823724 | Element- D (Replaces: 74011986) | 13 |
|
Immediately | $ 333.25 | |||
| 18 | 74011595 | Control, Burner (custom) | 10 |
|
- |
