01 - Cooktop, Burner And Grate Parts

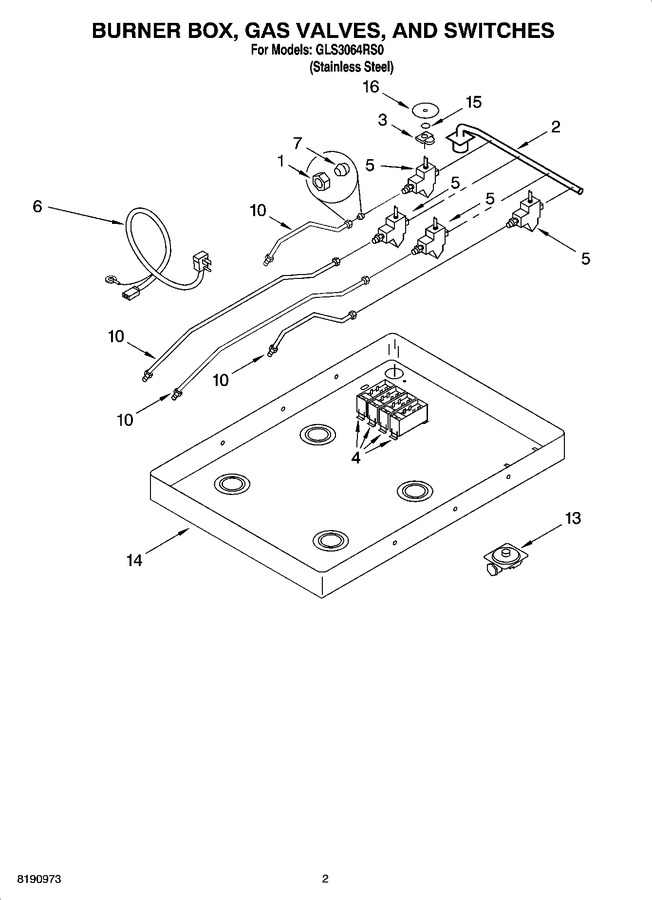

02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8190918 | Nut, Compression |
|
- | |||||
| 2 | 8190941 | Pipe, Manifold |
|
- | |||||
| 3 | WP8190913 | Switch, Spark (Replaces: 8190913) |
|
$ 150.64 | |||||
| 4 | W11601369 | Spark Module (4) (Replaces: 8190929) |
|
Immediately | $ 60.62 | ||||
| 5 | 8190915 | Valve, Burner (rr 1200 (green)) |
|
- | |||||
| 5 | 8190916 | Valve, Burner (lf 1500 (yellow)) |
|
- | |||||
| 5 | 8190914 | Valve, Burner (rf-lr 9000 (orange)) |
|
- | |||||
| 6 | 8190925 | Power Cord |
|
- | |||||
| 7 | 8190917 | Sleeve, Compresson |
|
- | |||||
| 10 | 8190938 | Tubing, Burner (lr) |
|
- | |||||
| 10 | 8190937 | Tubing, Burner (rr) |
|
- | |||||
| 10 | 8190940 | Tubing, Burner (rf) |
|
- | |||||
| 10 | 8190939 | Tubing, Burner (lf) |
|
- | |||||
| 13 | 8190926 | Regulator, Pressure |
|
$ 135.67 | |||||
| 14 | 8190942 | Box, Burner |
|
- | |||||
| 15 | 8190912 | Clip, Spring (4) |
|
- | |||||
| 16 | 8190979 | Screw (2) - Mntg |
|
- | |||||
| 16 | 8190963 | Gas Conversion Kit (natural Gas To Lp Gas) |
|
- | |||||
| 16 | 8190924 | Strain Relief |
|
- | |||||
| 16 | 8190978 | Bracket (2) - Mntg |
|
$ 81.04 | |||||
| 16 | 8190911 | Washer (4) (spark Switch) |
|
- | |||||
| 16 | N/A | Following Parts Not Illustrated And Optional Parts Not Included |
|
- | |||||
| 16 | W11628754 | Gasket (cooktop Mounting) (Replaces: 8190977) |
|
$ 142.44 |
