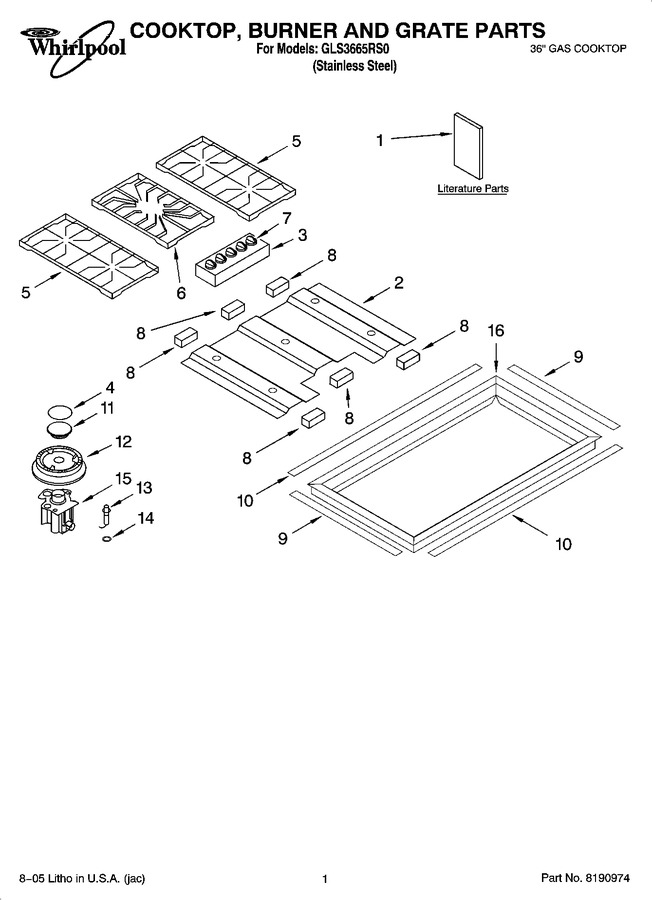

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9761890		Use & Care Guide		Appelez-nous	-
1	9762236		Lp Conversion Instructions		Appelez-nous	-
1	9761893		Installation Instructions		Appelez-nous	-
2	8190902		Cooktop		Appelez-nous	-
3	8190909		Panel, Control		Appelez-nous	-
4	WP8190893		Cap, Burner (rf - Lr)   (Replaces: 8190893)				$ 60.61
4	WP8190894		Cap, Burner (rr - Lf)   (Replaces: 8190894)				$ 64.03
4	8190895		Cap, Burner (center)		Appelez-nous	-
5	8190891		Grates (2)		Appelez-nous	-
6	8190980		Grate, Center		Appelez-nous	-
7	8190908		Knob, Control (5)		Appelez-nous	-
8	8190903		Seal, Foam (6) 3/8 X 1/2 X 5.5``		Appelez-nous	-
9	8190905		Seal, Foam (2) 1/8 X 1/2 X 18``				$ 44.36
10	8190981		Seal, Foam (2) 1/8 X 1/2 X 33``				$ 27.42
11	8190897		Head, Burner (rr-lf)				$ 190.51
11	WP8190896		Head, Burner (rf-lr)   (Replaces: 8190896)				$ 150.16
11	WP8190898		Head, Burner (center)   (Replaces: 8190898)				$ 184.97
12	8190900		Base, Burner (rr-lf)				$ 157.66
12	8190901		Base, Burner (center)				$ 177.52
12	8190899		Base, Burner (rf-lr)				$ 149.35
13	8190892		Ignitor, Surf (5)				$ 32.43
14	8190904		Clip, Spring (5)				$ 8.56
15	8190931		Holder, Orifice (rr-lf)		Appelez-nous	-
15	8190932		Holder, Orifice (center)		Appelez-nous	-
15	8190930		Holder, Orifice (rf-lr)		Appelez-nous	-
16	N/A		Following Parts Not Illustrated		Appelez-nous	-
16	8190927		Harness, Wire				$ 76.91
16	8190933		Ignitor Wire Kit				$ 58.80
16	8190906		Frame, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
