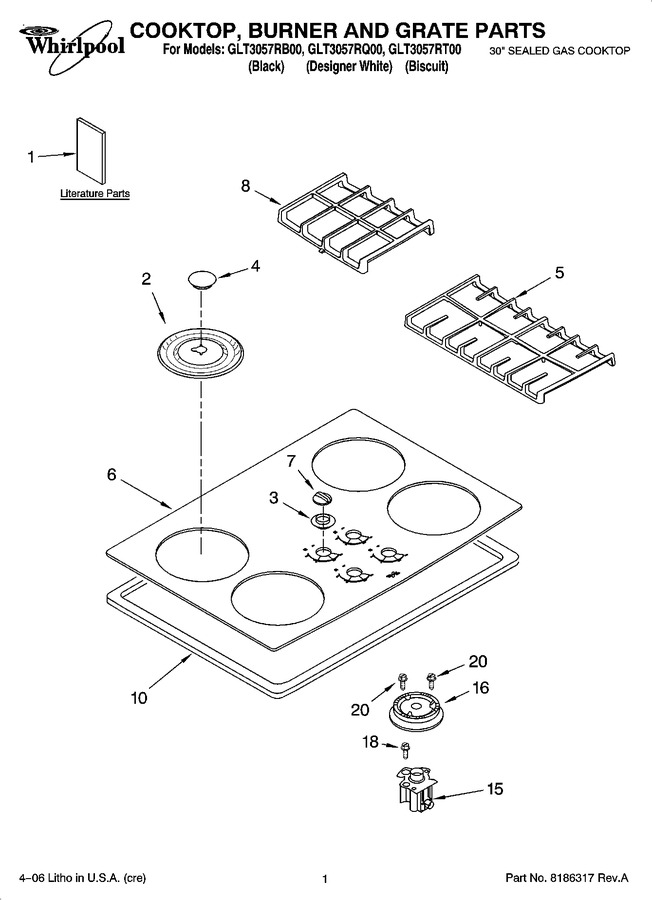

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286313 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 8286304 | Installation Instructions |
|
- | |||||
| 1 | 8286314 | Lp Conversion Instructions |
|
- | |||||
| 2 | 3191819 | Bowl, Burner 6k (rr) (biscuit) |
|
- | |||||
| 2 | 3191307 | Bowl, Burner 6k (rr) (black) |
|
- | |||||
| 2 | 3191308 | Bowl, Burner 6k (rr) (white) |
|
- | |||||
| 2 | 3191302 | Bowl, Burner 9k,12k (lr, Rf, Lf) (black) |
|
- | |||||
| 2 | 3191303 | Bowl, Burner 9k, 12k (lr, Rf, Lf) (white) |
|
- | |||||
| 2 | 3191818 | Bowl, Burner 9k, 12k (lr, Rf, Lf) (biscuit) |
|
- | |||||
| 3 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 3 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 3 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 4 | 8286154EP | Cap, Burner 9.5k (lr) (espresso) |
|
- | |||||
| 4 | WP8286155CB | Cap, Burner 12.5k (lf, Rf) (black) (Replaces: 8286155BL) |
|
$ 104.70 | |||||
| 4 | WP8286155CG | Cap, Burner 12.5k (lf, Rf) (cumberland Gray) (Replaces: 8286155CG) |
|
$ 89.27 | |||||
| 4 | 8286155EP | Cap, Burner 12.5k (lf, Rf) (espresso) |
|
- | |||||
| 4 | WP8286154CG | Cap, Burner 9.5k (lr) (cumberland Gray) (Replaces: 8286154CG) |
|
$ 86.04 | |||||
| 4 | WP8286154CB | Cap, Burner 9.5k (lr) (black) (Replaces: 8286154BL) |
|
$ 77.94 | |||||
| 4 | 8286153EP | Cap, Burner 6k (rr) (espresso) |
|
- | |||||
| 4 | WP8286153CG | Cap, Burner 6k (rr) (cumberland Gray) (Replaces: 8286153CG) |
|
$ 72.00 | |||||
| 4 | WP8286153CB | Cap, Burner 6k (rr) (black) (Replaces: 8286153BL) |
|
$ 61.97 | |||||
| 5 | 8285894EP | Grate Right Hand (espresso) |
|
- | |||||
| 5 | 8285894CG | Grate Right Hand (cumberland Gray) |
|
- | |||||
| 5 | 8285894BL | Grate Right Hand (black) |
|
- | |||||
| 5 | 8285892EP | Grate Left Hand (espresso) |
|
- | |||||
| 5 | 8285892CG | Grate Left Hand (cumberland Gray) |
|
- | |||||
| 5 | 8285892BL | Grate Left Hand (black) |
|
- | |||||
| 6 | W11399418 | Cooktop, Glass (biscuit) (Replaces: 8286104) |
|
$ 451.09 | |||||
| 6 | 8286103 | Cooktop, Glass (white) |
|
$ 0.01 | |||||
| 6 | W11399418 | Cooktop, Glass (black) (Replaces: 8286102) |
|
$ 451.09 | |||||
| 7 | 8286058WH | Knob, Control (4) (white) |
|
$ 21.10 | |||||
| 7 | WP8286058BL | Knob, Control (4) (black) (Replaces: 8286058BL) |
|
Immediately | $ 22.04 | ||||
| 7 | 8286058BT | Knob, Control (4) (biscuit) |
|
- | |||||
| 8 | 8285893CG | Grate, Center (cumberland Gray) |
|
- | |||||
| 8 | 8285893BL | Grate, Center (black) |
|
- | |||||
| 8 | 8285893EP | Grate, Center (espresso) |
|
- | |||||
| 10 | 3191932 | Seal, Foam |
|
- | |||||
| 15 | WPW10128448 | Holder, Orifice (6k (rr)) (Replaces: 8286179) |
|
Immediately | $ 100.54 | ||||
| 15 | WPW10128450 | Holder, Orifice (9k (lr)) (Replaces: 8286178) |
|
$ 106.59 | |||||
| 15 | WPW10128451 | Holder, Orifice (12k (rf, Lf)) (Replaces: 8286180) |
|
$ 99.80 | |||||
| 16 | WPW10406283 | Head, Burner (lr) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 16 | WPW10406797 | Head, Burner (lf) (rf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 16 | WPW10406243 | Head, Burner (rr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 | |||||
| 20 | WP4449809 | Screw (4) (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 20 | WP3400806 | Screw (2) (Replaces: 3400806) |
|
$ 6.94 |
